Stellar Eco (8 pack)

Red Arrow Stellar Eco LED Downlights
Back

Stellar Eco (8 pack)

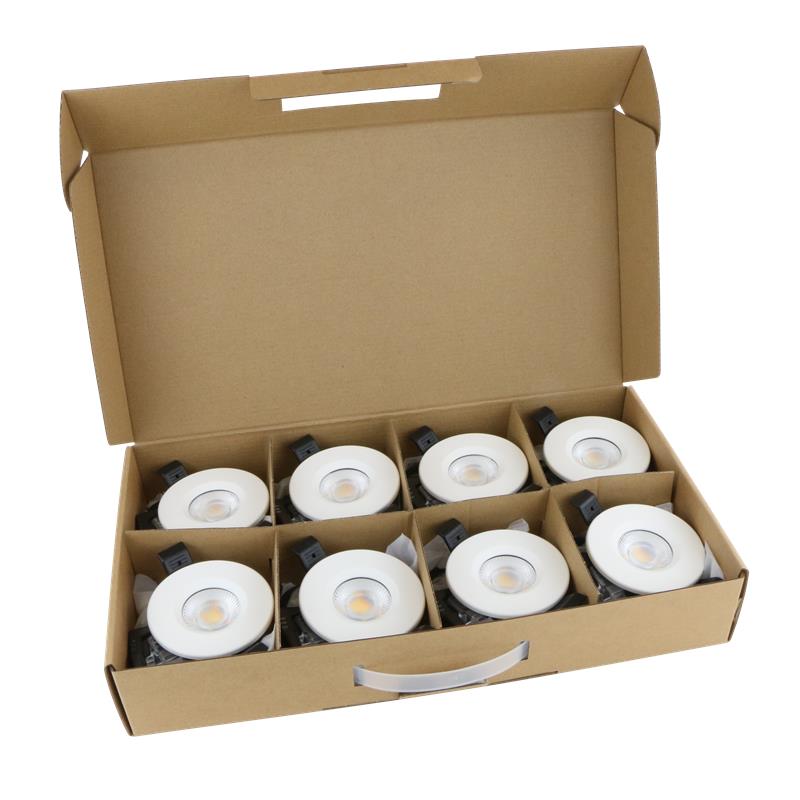

The SR/ECO/8/W is a pack of 8 LED downlights using the same ultra-slim housing as Stellar.

  • Contractor 8 pack.
  • 3CCT selectable.
  • Fire rated to EN1365-2:2014 / BS476-21:1987.
  • Acoustic rating to ISO10140 – 2 : 2010.
  • Compatible with Stellar interchangeable bezels.

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
SR/ECO/8/W
Wattage
6W
Lumen Output
750lm
Efficacy
125 lm/W
Energy class
E
Colour Appearance (CCT)
3000K / 4000K / 6000K
Frequency
50/60Hz
Colour Rendition (CRI)
Ra > 80
Driver Type
Dimmable
Colour Finish
White RAL9003
Warranty
3 Years
Voltage
230V
IP Rating
IP65 (from below ceiling)
IK Rating
IK07
LED Life Expectancy
L70B50 30,000 Hours
Power Factor
0.7
Working Temperature
-20°C to 40°C
Beam Angle
40°
Electrical Class
Class II
Approval
UKCA CE
Material (Body/Housing)
Steel
Material (Diffuser/Cover)
Polycarbonate
Dimensions (mm)
Ø: 86 x D: 32 mm
Cut out (mm)
68
Net Weight (KG)
0.18
Barcode
5055807627672
Box Dimensions (mm)
L:187 x W: 372 x D: 75 mm
Units/Outer Carton
8 Packs (8pcs)
Outer Carton Barcode
15055807627679
Outer Carton Dimensions (mm)
L: 384 x W: 382 x D: 320 mm
