Bastion LED Panel

Bastion edge lit panel red arrow

Red Arrow Bastion LED Panel

Red Arrow Bastion Dimensions

Red Arrow Bastion Energy Label

Red Arrow 2 Years On-Site Warranty

Back

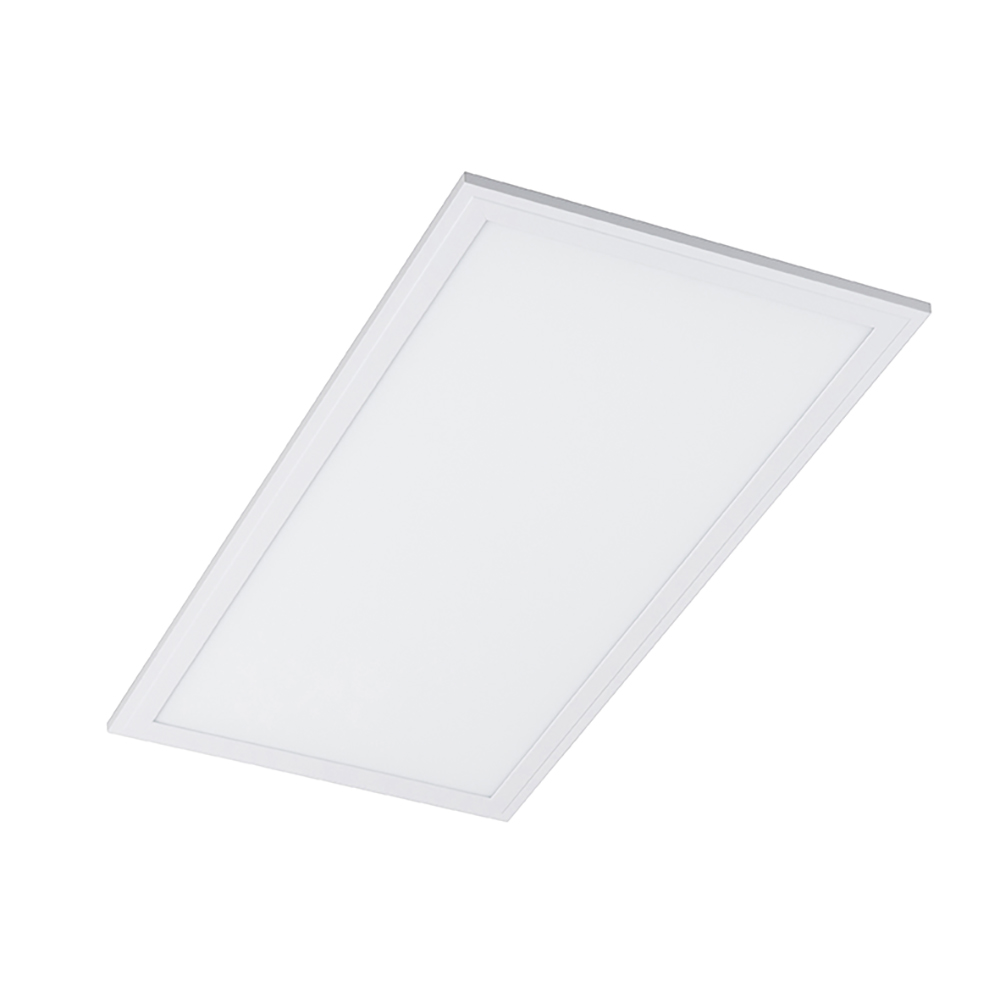

Bastion LED Panel

The BLP6326-60 Bastion is a 6000K cost efficient LED panel.

TP(b) rated diffuser.
Shallow profile, only 9mm deep.
Dimmable driver and emergency conversion kit available to order separately.
Flicker free driver.

Speak to your local account manager

Added Login to Buy Online

Product Code

BLP6326-60

Wattage

26W

Lumen Output

2340 lm

Efficacy

90 lm/W

Energy class

F

Colour Appearance (CCT)

6000K

Frequency

50/60Hz

Colour Rendition (CRI)

Ra > 80

Driver Type

Fixed Output

Colour Finish

White RAL9003

Warranty

5 Years

Voltage

230V

IP Rating

IP20

IK Rating

IK04

LED Life Expectancy

L70B50 50,000 Hours

Power Factor

0.9

Working Temperature

-20°C to 50°C

Electrical Class

Class II

Approval

UKCA & CE

Material (Body/Housing)

Aluminium

Material (Diffuser/Cover)

TP(b) rated Polypropylene

Dimensions (mm)

L: 595 x W: 295 x D: 9 mm

Length (mm)

595

Width (mm)

295

Depth (mm)

9

Net Weight (KG)

1.25 kg

Barcode

5055807620505

Box Dimensions (mm)

L: 660 x W: 325 x D: 30 mm

Box Gross Weight (KG)

1.45 kg

Units/Outer Carton

10

Outer Carton Barcode

15055807620502

Outer Carton Gross Weight (KG)

12.9 kg
