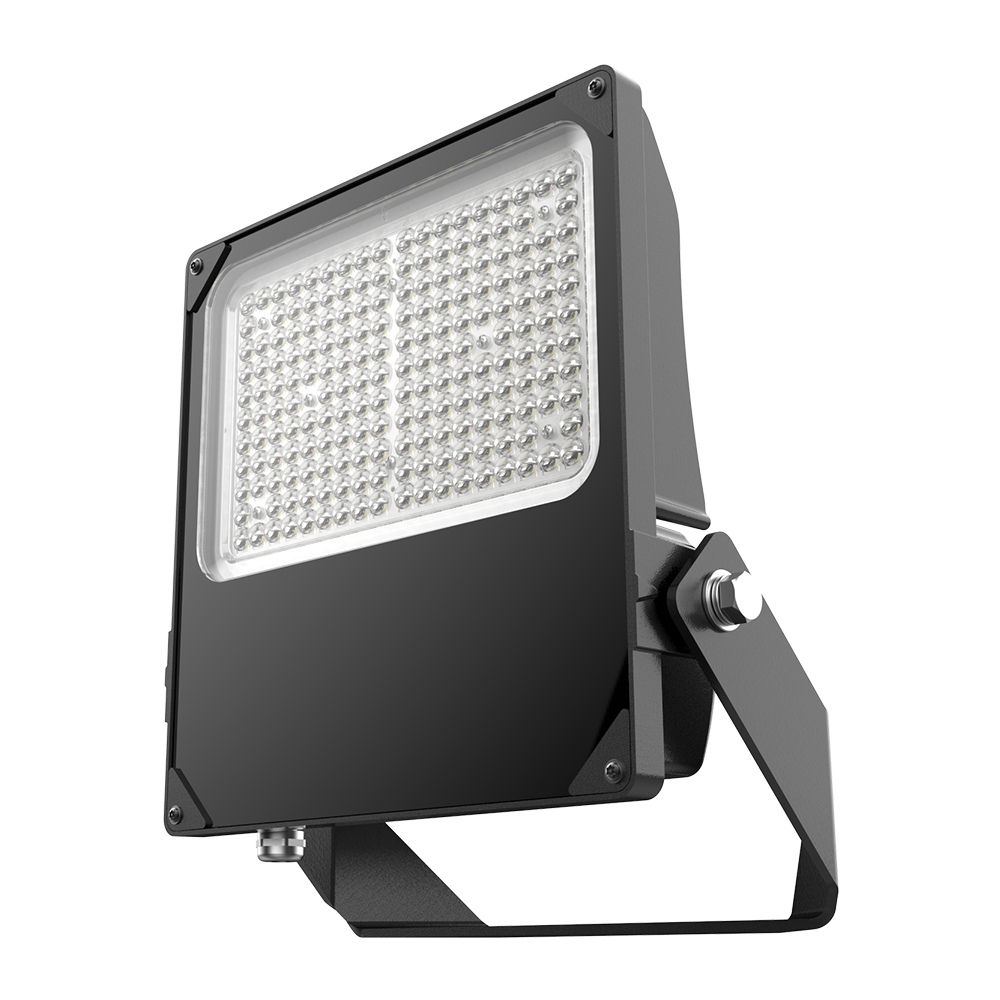

Castor Asymmetric CCT Floodlight

The CA240-T3-CCT is the CCT selectable version of the popular Castor Floodlight.

  • Efficacy of 150lm/W
  • C4 Coastal Treatment suitable for Industrial and coastal areas with moderate salt content..
  • Supplied with 1.5m pre wired cable
  • Die cast aluminium housing
  • 7 Year Warranty

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
CA240-T3-CCT
Wattage
240W
Lumen Output
36000lm
Efficacy
150 lm/W
Energy class
D
Colour Appearance (CCT)
2700/4000K
Frequency
50-60Hz
Colour Rendition (CRI)
Ra >70
Driver Type
Fixed Output
Colour Finish
Black RAL9017
Warranty
7 Years
Voltage
220-240V
IP Rating
IP66
IK Rating
IK08
LED Life Expectancy
50000
Power Factor
0.95
Working Temperature
-30°C to 50°C
Beam Angle
Type III (55°X125°)
Electrical Class
Class I
Approval
UKCA CE
Material (Body/Housing)
Aluminium
Material (Diffuser/Cover)
Polycarbonate
Dimensions (mm)
L: 455 x W: 396 x D: 64 mm
Net Weight (KG)
5.55 kg
Barcode
5055807631037
Box Dimensions (mm)
L: 480 x W: 440 x D: 90 mm
Box Gross Weight (KG)
6.26 kg
Units/Outer Carton
2
Outer Carton Barcode
15055807631034
Outer Carton Dimensions (mm)
L: 500 x W: 460 x D: 210 mm
Outer Carton Gross Weight (KG)
13.48 kg

Downloads

FILENAME
SINGLE DOWNLOAD
ADD TO ZIP
CA240-T3-CCT Datasheet
