Circular LED Gear Tray for Robust Mini

Red Arrow CCT Circular Gear Tray for Robust Mini
Back

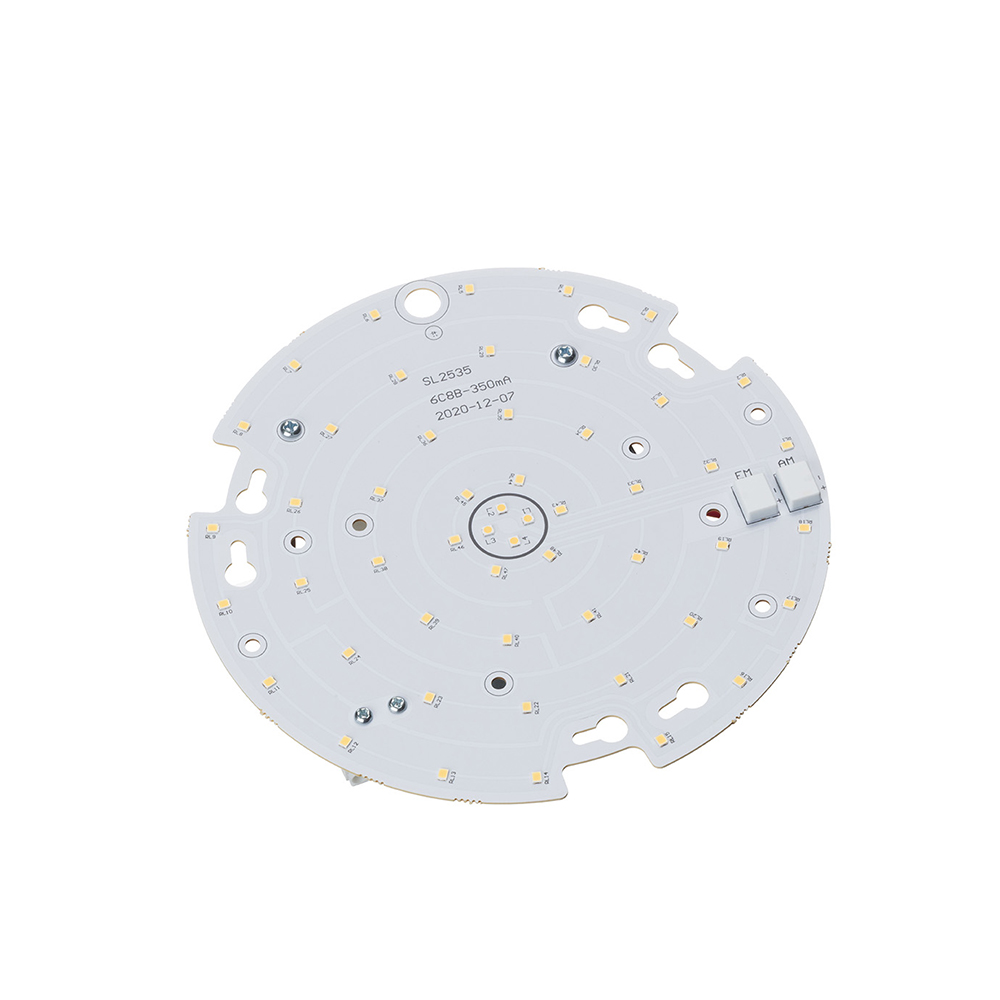

Circular LED Gear Tray for Robust Mini

The GTC7-CCT is a small gear tray perfect for smaller bulkheads.

  • Small 185mm Diameter
  • Selectable CCT 3000/4000/6000K
  • Designed for Robust Mini empty body circular bulkhead fitting
  • Efficacy of 155 lm/W

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
GTC7-CCT
Wattage
7W
Lumen Output
1095lm
Efficacy
155 lm/W
Colour Appearance (CCT)
3000K | 4000K | 6000K
Frequency
50/60Hz
Colour Rendition (CRI)
Ra >80
Driver Type
Fixed Output
Colour Finish
White
Warranty
5 Years
Voltage
220-240V
Power Factor
>0.8
Working Temperature
-20°C to 40°C
Electrical Class
Class II
Approval
UKCA CE
Material (Body/Housing)
Phenolic Resin
Dimensions (mm)
Ø: 185 x D: 32mm
Net Weight (KG)
0.14 kg
Barcode
5055807629485
Box Dimensions (mm)
L: 200 x W: 190 x D: 42 mm
Box Gross Weight (KG)
0.19 kg
Units/Outer Carton
20
Outer Carton Barcode
15055807629482
Outer Carton Dimensions (mm)
L: 460 x W: 400 x D: 215 mm
Outer Carton Gross Weight (KG)
4.8 kg

Downloads

FILENAME
SINGLE DOWNLOAD
ADD TO ZIP
GTC7-CCT Instructions
GTC7-CCT Spec Sheet
