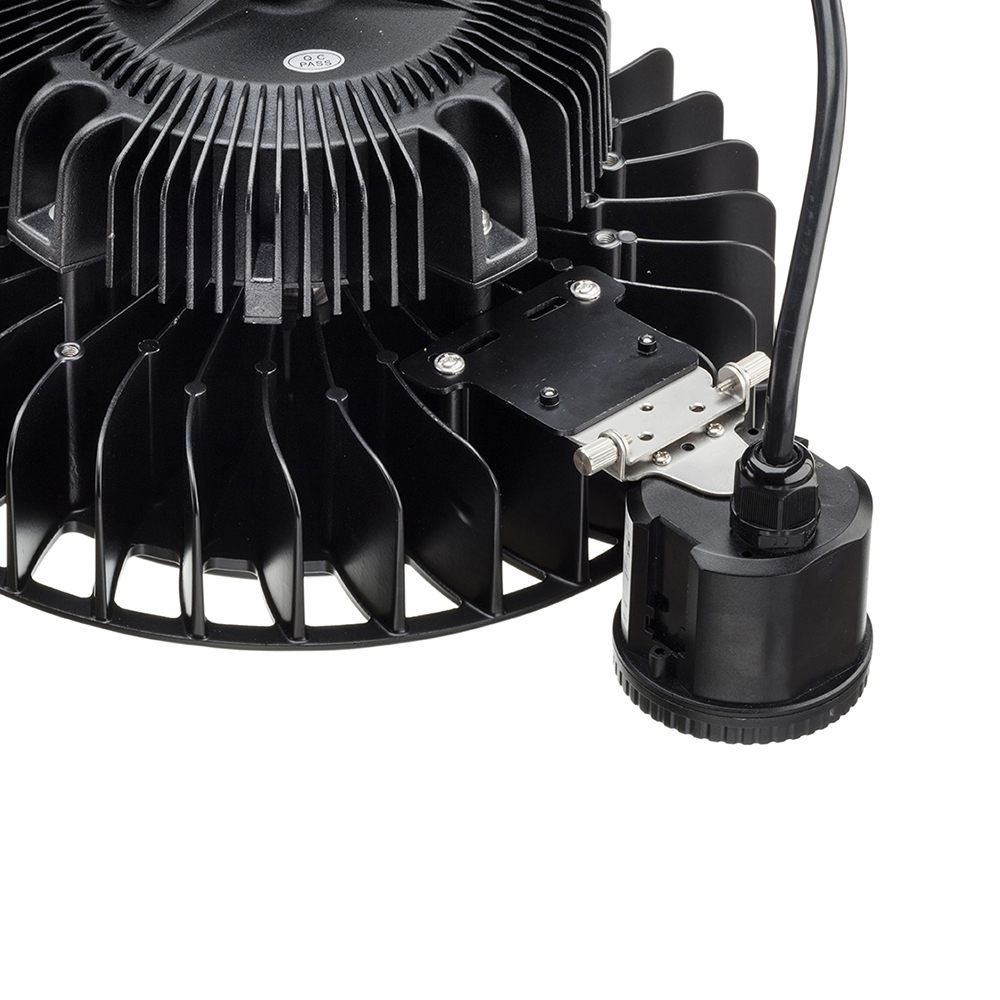

Red Arrow Commando LED High Bay with Microwave Sensor
Red Arrow Commando Dimmable LED High Bay Dimensions
Red Arrow 2 Years On-Site Warranty
Back

Commando LED High Bay

Use code: COMMANDO10 at checkout for 10% off!

The COMHB240BD-30 is suitable for any high mounting application project.

  • High efficiency up to 145 lm/W.
  • Wide supply voltage range 100-277V suitable for site lighting and other applications.
  • Meanwell 1-10V dimmable driver.
  • Optional refractor attachment.
  • Built-in resettable surge protection.

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
COMHB240BD-3
Wattage
240W
Lumen Output
34,800 lm
Efficacy
145 lm/W
Colour Appearance (CCT)
6500K
Frequency
50/60Hz
Colour Rendition (CRI)
Ra > 80
Driver Type
1 - 10V Dimmable
Colour Finish
Black
Warranty
5 Years
Voltage
100-277V
IP Rating
IP65
IK Rating
IK10
LED Life Expectancy
L80B50 50,000 Hours
Power Factor
>0.93
Working Temperature
-30°C to 50°C
Electrical Class
Class I
Approval
UKCA CE
Material (Body/Housing)
Die-Cast Aluminium
Material (Diffuser/Cover)
Polycarbonate
Dimensions (mm)
Ø: 295 x D: 212 mm
Net Weight (KG)
5.3 kg
Barcode
5055807620178
Box Dimensions (mm)
L: 350 x W: 350 x D: 240 mm
Box Gross Weight (KG)
6.2 kg
Units/Outer Carton
2
Outer Carton Barcode
 15055807620175
Outer Carton Dimensions (mm)
L: 390 x W: 390 x D: 510 mm
Outer Carton Gross Weight (KG)
13.4 kg

Downloads

FILENAME
SINGLE DOWNLOAD
ADD TO ZIP
Commando Instructions
COMHB240BD-3 Spec Sheet
Commando High Bay LDT Files COMHB240BD-3
Download ZIP
