Orion LED Street Light

Red Arrow Orion LED Street Light

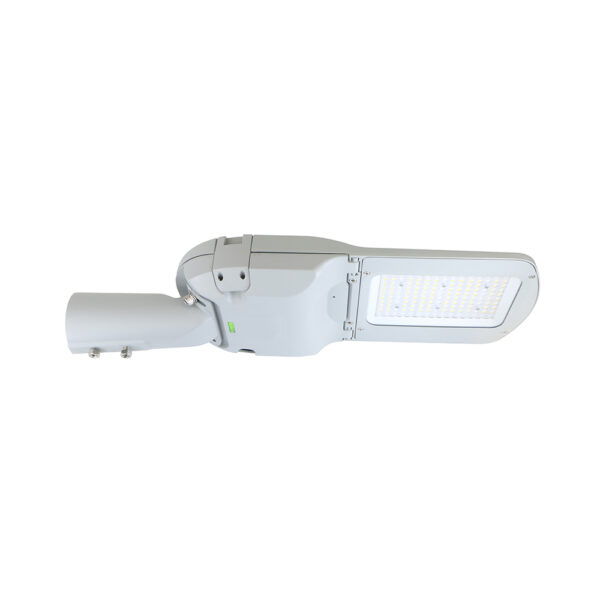

Red Arrow Orion LED Street Light Side View
Red Arrow Orion LED Street Light Side View Flat Angle
Red Arrow Orion LED Street Light Top View
Red Arrow Orion LED Street Light Back Detailed View
Red Arrow 2 Years On-Site Warranty
Red Arrow Tailor Made Logo
Back

Orion LED Street Light

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
ORN20/T3/N3/740
Wattage
20W
Lumen Output
3000 lm
Efficacy
150 lm/W
Energy class
D
Colour Appearance (CCT)
4000K
Frequency
50/60Hz
Colour Rendition (CRI)
>70
Driver Type
Fixed
Sensor Type
NEMA 3
Colour Finish
Grey RAL9006
Warranty
5 Years
Voltage
120-277V
IP Rating
IP66
IK Rating
IK08
LED Life Expectancy
136,000 Hours
Power Factor
>0.9
Working Temperature
-30ËšC to 50ËšC
Beam Angle
Type III (140Ëš x 80Ëš)
Electrical Class
Class I
Approval
UKCA CE
Material (Body/Housing)
Die-Cast Aluminium
Material (Diffuser/Cover)
Polycarbonate
Dimensions (mm)
L: 568 x W: 200 x D: 109 mm
Net Weight (KG)
4.5 kg
Barcode
5055807626064
Box Dimensions (mm)
L: 603 x W:235 x D: 135 mm
Box Gross Weight (KG)
5.11 kg
Units/Outer Carton
1

Downloads

FILENAME
SINGLE DOWNLOAD
ADD TO ZIP
Orion Instructions
ORN20/T3/N3/740 Spec Sheet
ORN20/T3/N3/740 LDT File
Download ZIP
