Rhombus Pro LED Panel

The RBP12328-60 Rhombus Pro is a 6000K high-efficacy recessed LED panel.

  • TP(a) Thermoplastic diffuser.
  • Excellent efficacy – up to 130lm/w.

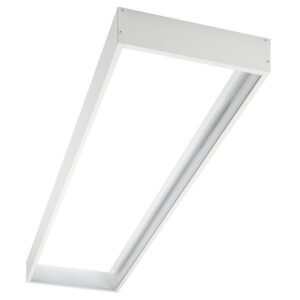

  • Emergency options & surface mount kits available.
  • Philips driver as standard.

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
RBP12328-60
Wattage
28W
Lumen Output
3640 lm
Efficacy
130 lm/W
Energy class
D
Colour Appearance (CCT)
6000K
Frequency
50/60Hz
Colour Rendition (CRI)
Ra > 80
Driver Type
Fixed Output
Colour Finish
White RAL9003
Guarantee
7 Years
Voltage
230V
IP Rating
IP40
IK Rating
IK03
LED Life Expectancy
L80B50 50,000 Hours
Power Factor
>0.9
Working Temperature
-20°C to 45°C
Electrical Class
Class II
Approval
UKCA CE
Material (Body/Housing)
Steel & Aluminium
Material (Diffuser/Cover)
TP(a) Rated Styrene
Dimensions (mm)
L: 1195 x W: 295 x D: 36 mm
Length (mm)
1195
Width (mm)
295
Depth (mm)
36
Net Weight (KG)
2.2 kg
Barcode
5055807623117
Box Dimensions (mm)
L: 1275 x W: 315 x D: 35 mm
Box Gross Weight (KG)
2.55 kg
Units/Outer Carton
5
Outer Carton Barcode
15055807623114
Outer Carton Dimensions (mm)
L: 1290 x W: 330 x D: 190 mm
Outer Carton Gross Weight (KG)
13.7 kg

Downloads

FILENAME
SINGLE DOWNLOAD
ADD TO ZIP
Rhombus Pro Instructions
Rhombus Pro Spec Sheet
Download ZIP
