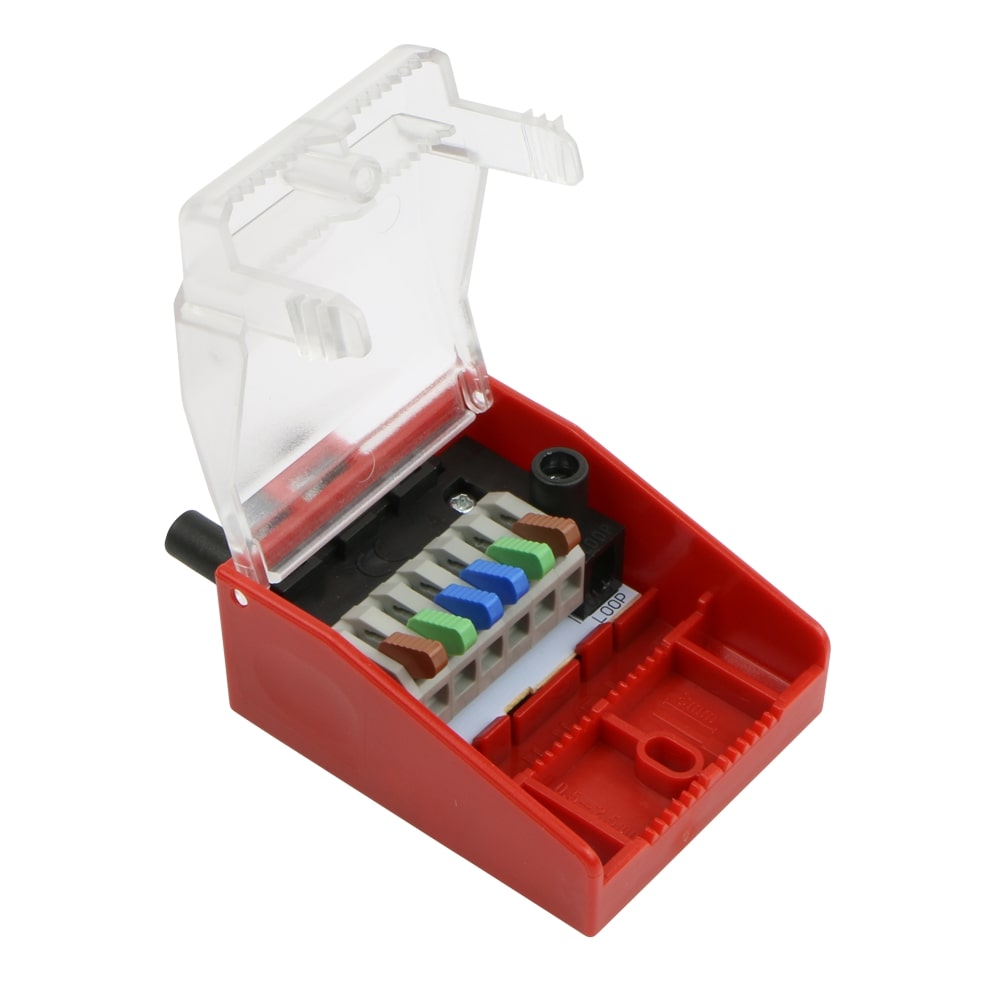

Red Arrow SR/T/W Speed Terminal
Red Arrow Stellar Tilt LED Downlights Dimensions
Red Arrow Stellar Tilt LED Downlights Energy Label
Back

Stellar Tilt 4CCT LED Downlights

The SR/T/W is the tilt version of the popular SR/W and is now 4CCT with upgraded speed terminals and emergency loop terminal.

  • Improved Speed Terminal Block & EM Loop.
  • Selectable 4CCT.
  • Fire rated to EN1365-2:2014 / BS476-21:1987.
  • Optional circular and square interchangeable bezels.
  • Elegant 20° tilting inner bezel for directional light.

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
SR/T/W
Wattage
6W
Lumen Output
775 lm
Efficacy
129 lm/W
Energy class
E
Colour Appearance (CCT)
2700K / 3000K / 4000K / 6000K
Frequency
50/60Hz
Colour Rendition (CRI)
Ra > 80
Driver Type
Dimmable
Colour Finish
White RAL9003
Warranty
5 Years
Voltage
230V
IP Rating
IP65 (from below ceiling)
LED Life Expectancy
L70B50 50,000 Hours
Power Factor
>0.85
Working Temperature
-20°C to 40°C
Beam Angle
40°
Electrical Class
Class II
Approval
UKCA CE
Material (Body/Housing)
Steel
Material (Diffuser/Cover)
Polycarbonate
Dimensions (mm)
Ø: 100 x D: 42 mm
Net Weight (KG)
0.35 kg
Barcode
5055807624800
Box Dimensions (mm)
L:103 x W: 103 x D: 82 mm
Box Gross Weight (KG)
0.39 kg
Units/Outer Carton
50
Outer Carton Barcode
15055807624807
Outer Carton Dimensions (mm)
L: 530 x W: 530 x D: 179 mm
Outer Carton Gross Weight (KG)
17.9 kg

Downloads

FILENAME
SINGLE DOWNLOAD
ADD TO ZIP
Stellar Tilt Instructions
SR/T/W Spec Sheet
SR/T/W LDT File
Download ZIP
