Wilson X LED Bulkhead

Wilson X LED Bulkhead

The WLX25 is a slim LED bulkhead with improved efficacy.

  • Shallow profile with opal homogenously lit diffuser.
  • RAL9010 white body.
  • Higher lumen output of 2600lm and improved efficacy of 104lm/W.
  • Suitable for wall and ceiling mounting, ideal for a wide range of applications, particularly stairwells and circulation areas.

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
WLX25
Wattage
25W
Lumen Output
2600 lm
Efficacy
104 lm/W
Colour Appearance (CCT)
4000K
Frequency
50Hz
Colour Rendition (CRI)
Ra > 80
Driver Type
Fixed Output
Colour Finish
White RAL9010
Guarantee
5 Years
Voltage
230V
IP Rating
IP20
IK Rating
IK04
LED Life Expectancy
L80B50 30,000 Hours
Power Factor
>0.9
Working Temperature
-20°C to 40°C
Electrical Class
Class I
Approval
UKCA & CE
Material (Body/Housing)
Steel
Material (Diffuser/Cover)
Polycarbonate

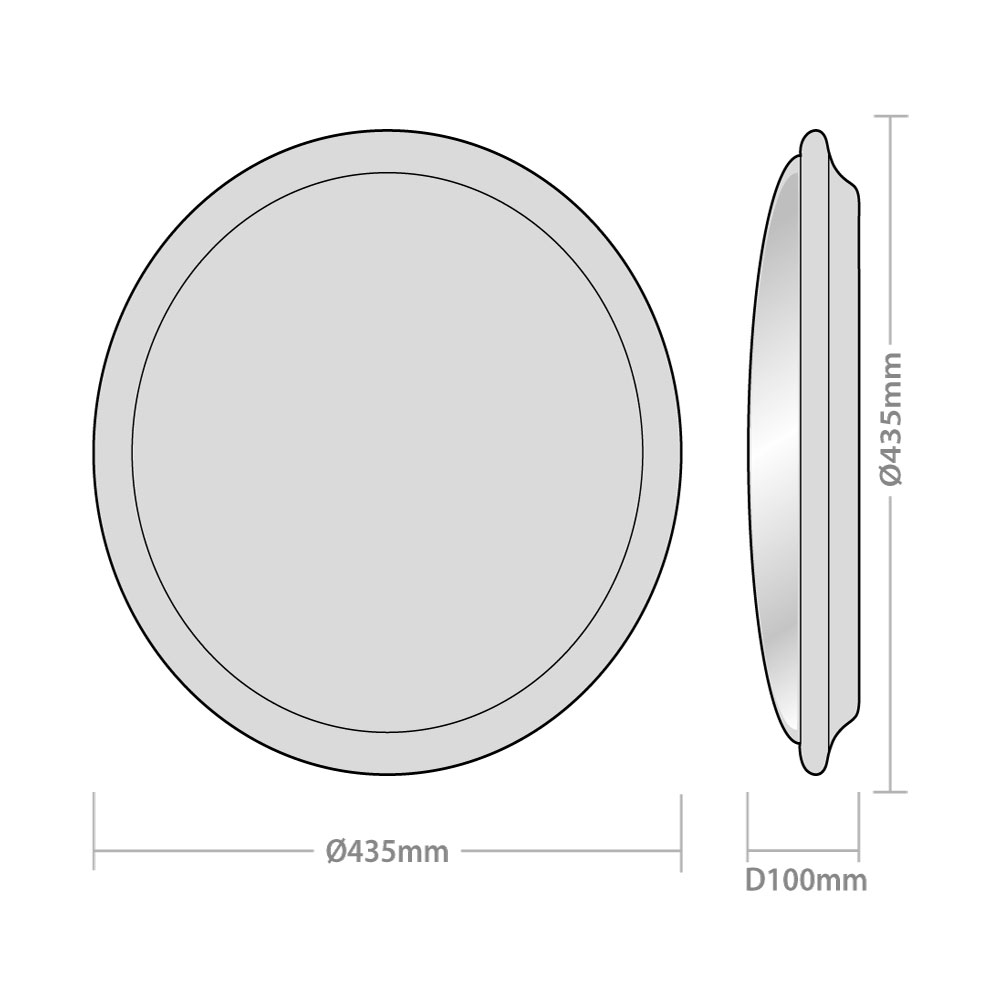

Dimensions (mm)
Ø: 435 x D: 100 mm
Net Weight (KG)
2.36 kg
Barcode
5055807622233
Box Dimensions (mm)
L: 451 x W: 442 x D: 112 mm
Box Gross Weight (KG)
2.66 kg
Units/Outer Carton
5
Outer Carton Barcode
15055807622230
Outer Carton Dimensions (mm)
L: 475 x W: 465 x D: 590 mm
Outer Carton Gross Weight (KG)
14.3 kg

Downloads

FILENAME
ADD TO ZIP
Wilson X Instructions
WLX25 Spec Sheet
WLX25 LDT File
