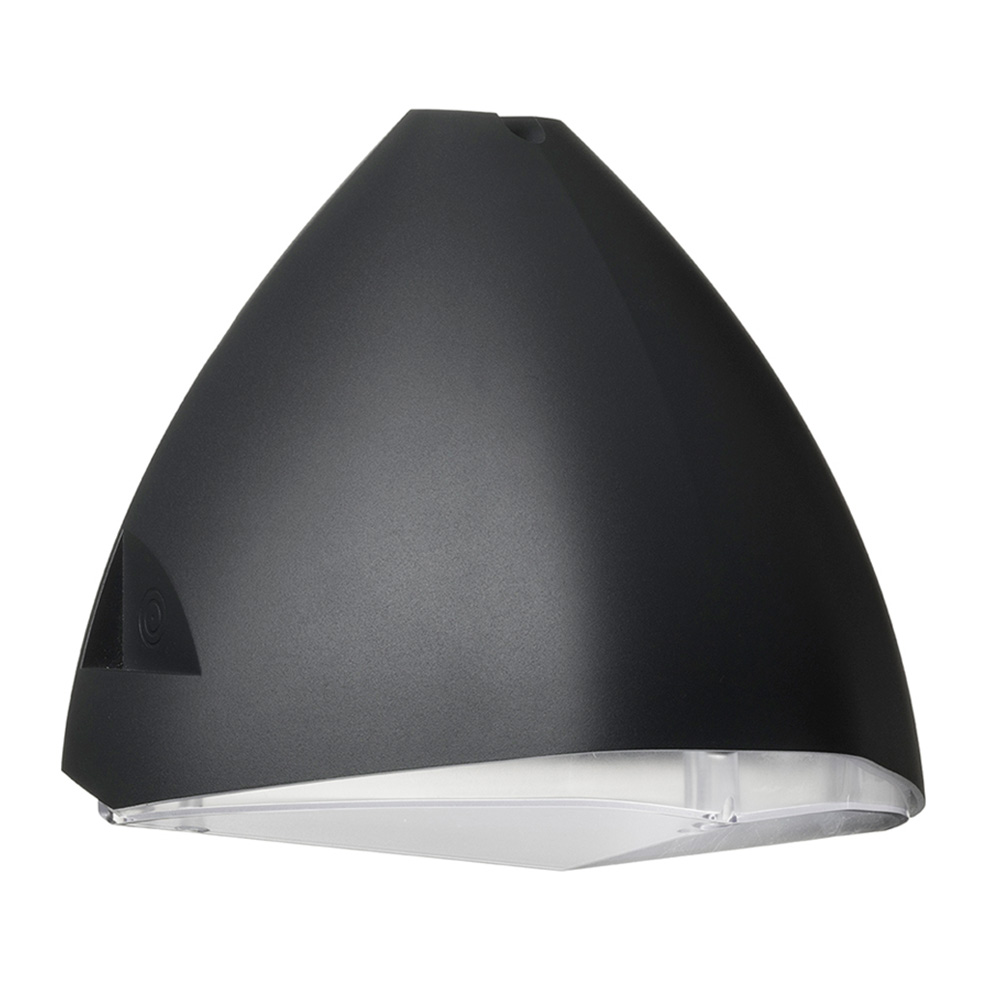

Zenith LED Wallpack

Zenith LED Wallpack

Zenith Wallpack Area 13-28W c/w 3h EM 3/4K Grey

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
ZENAE-CCT
Wattage
13W /18W / 28W
Lumen Output
1700 lm / 2500 lm / 3500 lm
Efficacy
131 lm/W / 139 lm/W / 125 lm/W
Colour Appearance (CCT)
3000K / 4000K
Frequency
50/60Hz
Colour Rendition (CRI)
Ra > 80
Driver Type
Selectable Output
Colour Finish
RAL7016 Anthracite
Warranty
7 Years
Emergency Battery Guarantee
5 Years
Voltage
230V
IP Rating
IP65
IK Rating
IK10
LED Life Expectancy
L80B50 > 54,000 Hours
Power Factor
>0.9
Working Temperature
0°C to 40°C
EM Working Temperature
0°C to 40°C
Beam Angle
110° Area Flood
Electrical Class
Class I
Approval
UKCA CE
Material (Body/Housing)
Die-Cast Aluminium
Material (Diffuser/Cover)
Polycarbonate
Dimensions (mm)
L: 265 x W: 319 x D: 165 mm
Net Weight (KG)
2.15 kg
Barcode
5055807623230
Box Dimensions (mm)
L: 300 x W: 360 x D: 180 mm
Box Gross Weight (KG)
2.7 kg
Units/Outer Carton
4
Outer Carton Barcode
15055807623237
Outer Carton Dimensions (mm)
L: 630 x W: 380 x D: 390 mm
Outer Carton Gross Weight (KG)
12.20 kg

Zenith Wallpack Area 13-28W c/w 3h EM 3/4K Grey

Downloads

FILENAME
ADD TO ZIP
Zenith Instructions
ZENAE-CCT Spec Sheet
ZENAE-CCT LDT Files
