Discus LED Downlight

Discus LED Downlight

The DSC1018PIR-40 is a stylish commercial LED downlight with PIR.

  • Ultra-thin profile design – only 18mm deep.
  • Adjustable surface & semi-recessed mounting bracket – wall or ceiling mount.

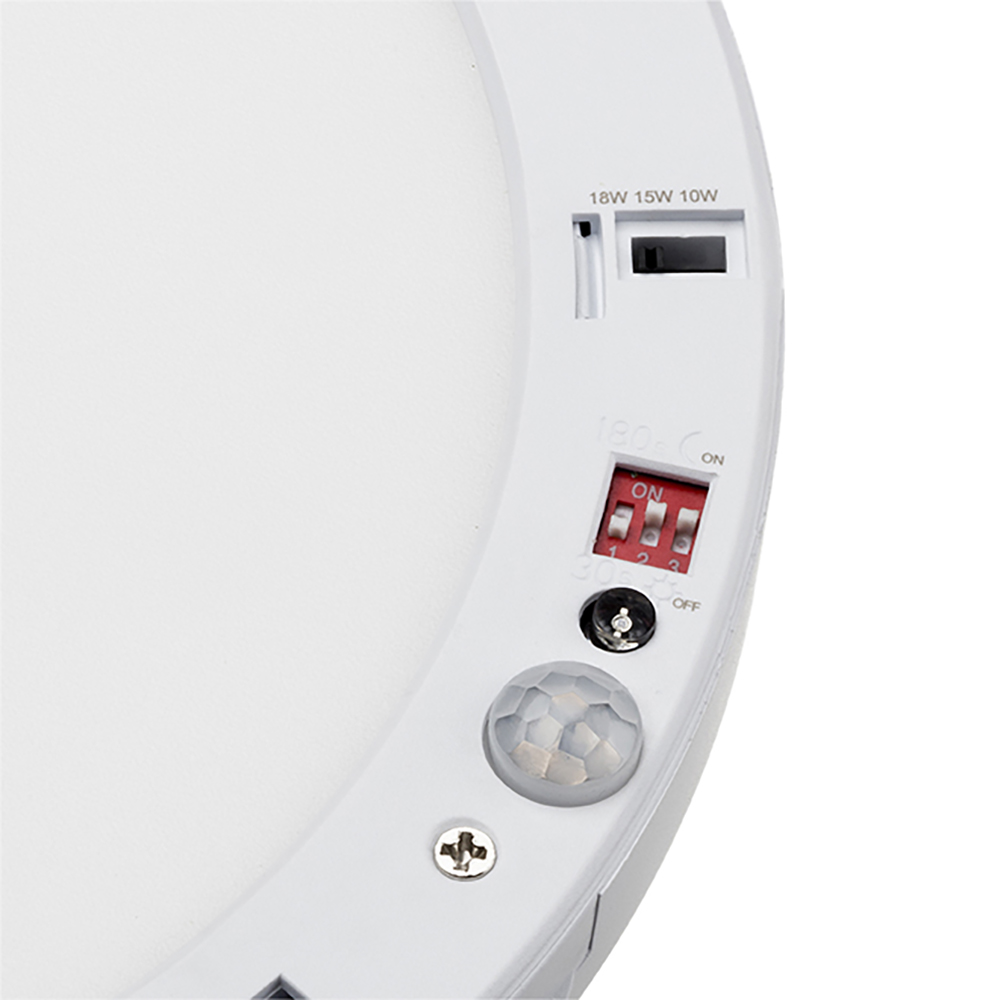

  • Wattage selectable for variable lumen output.
  • Pre-wired 30cm cable included.
  • Integral PIR sensor.
  • Silver Bezel can be purchased separately.

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
DSC1018PIR-40
Wattage
10W / 15W / 18W
Lumen Output
950 / 1350 / 1500 lm
Efficacy
95 / 90 / 83 lm/W
Energy class
G
Colour Appearance (CCT)
4000K
Frequency
50/60Hz
Colour Rendition (CRI)
Ra > 80
Driver Type
Fixed Output
Sensor Type
PIR
Colour Finish
White
Guarantee
3 Years
Voltage
230V
IP Rating
IP20
IK Rating
IK04
LED Life Expectancy
L80B50 25,000 Hours
Power Factor
0.5
Working Temperature
-25°C to 40°C
Electrical Class
Class II
Approval
UKCA & CE
Material (Body/Housing)
Aluminium
Material (Diffuser/Cover)
Polystyrene
Dimensions (mm)
Ø: 220 x D: 18 mm
Depth (mm)
18
Diameter (mm)
220
Cut out (mm)
65-205
Net Weight (KG)
0.36 kg
Barcode
5055807620925
Box Dimensions (mm)
L: 229 x W: 265 x D: 30 mm
Box Gross Weight (KG)
0.45 kg
Units/Outer Carton
20
Outer Carton Barcode
15055807620922
Outer Carton Dimensions (mm)
L: 478 x W: 295 x D: 320 mm
Outer Carton Gross Weight (KG)
10 kg

Downloads

FILENAME
ADD TO ZIP
Discus Instructions
DSC1018PIR-40 Spec Sheet
Discus LDT Files DSC1018PIR-40
