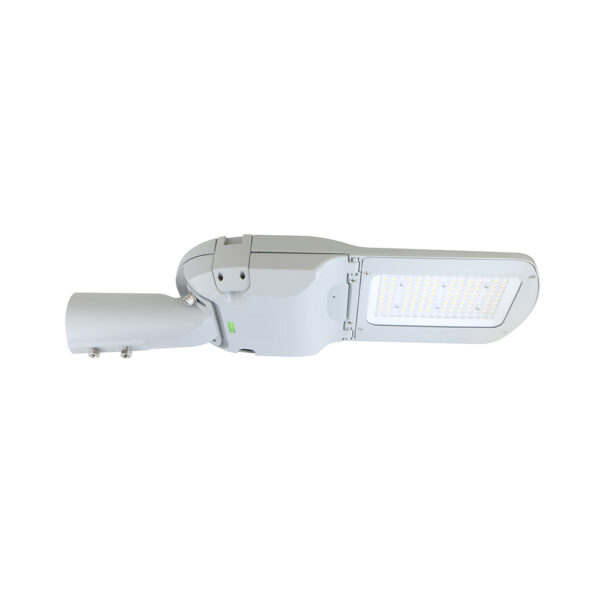

Orion LED Street Light

Product Code
ORN60/T3/N3/740
Wattage
60W
Lumen Output
9000 lm
Efficacy
150 lm/W
Energy class
D
Colour Appearance (CCT)
4000K
Frequency
50/60Hz
Colour Rendition (CRI)
>70
Driver Type
Fixed
Sensor Type
NEMA 3
Colour Finish
Grey RAL9006
Guarantee
5 Years
Voltage
120-277V
IP Rating
IP66
IK Rating
IK08
LED Life Expectancy
136,000 Hours
Power Factor
>0.9
Working Temperature
-30˚C to 50˚C
Beam Angle
Type III (140˚ x 80˚)
Electrical Class
Class I
Approval
UKCA CE
Material (Body/Housing)
Die-Cast Aluminium
Material (Diffuser/Cover)
Polycarbonate
Dimensions (mm)
L: 568 x W: 200 x D: 109 mm
Net Weight (KG)
4.5 kg
Barcode
5055807626088
Box Dimensions (mm)
L: 603 x W:235 x D: 135 mm
Box Gross Weight (KG)
5.11 kg
Units/Outer Carton
1

test

Downloads

FILENAME
ADD TO ZIP
Orion Instructions
ORN60/T3/N3/740 Spec Sheet
ORN60/T3/N3/740 LDT File
