Polo Combi LED Bulkhead

Red Arrow Polo Combi

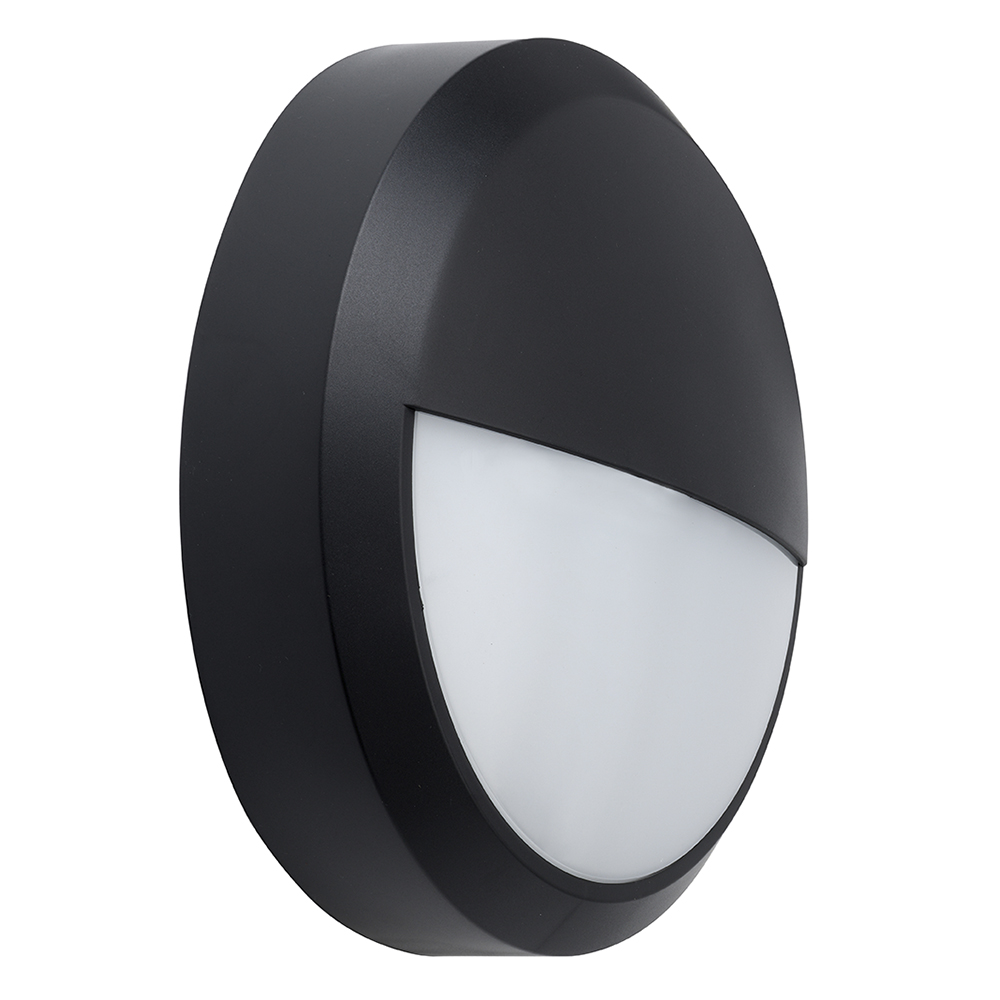

Red Arrow Polo Combi Multi-Use LED Bulkhead with Black Trim
Red Arrow Polo Combi Multi-Use LED Bulkhead with White Trim
Red Arrow Polo Combi Multi-Use LED Bulkhead without Trim
Red Arrow Polo Combi Multi-Use LED Bulkhead Dimensions
Back

Polo Combi LED Bulkhead

The PCB13/MS-CCT Polo Combi offers 36 combinations from a single LED bulkhead.

  • Configurable in 36 different ways.
  • Multi-Wattage – Choose the light output.
  • Multi-CCT – Choose warm white, cool white or daylight LED colour.
  • Multi-Trim – Curved bezel, eyelid trim or use without trim.
  • Integral energy saving microwave detector.

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
PCB13/MS-CCT
Wattage
13W
Lumen Output
1395 lm
Efficacy
107 lm/W
Colour Appearance (CCT)
3000K 4000K/6500K Selectable
Frequency
50/60Hz
Colour Rendition (CRI)
Ra > 80
Driver Type
Fixed Output - Selectable Wattage
Sensor Type
Microwave
Colour Finish
White RAL9016 / Black RAL9005
Warranty
5 Years
Voltage
220-240V
IP Rating
IP65
IK Rating
IK08
LED Life Expectancy
L70B50 54,000 Hours
Power Factor
0.8/0.9
Working Temperature
-20°C to 40°C
Electrical Class
Class II
Approval
UKCA & CE
Material (Body/Housing)
ABS
Material (Diffuser/Cover)
Polycarbonate
Dimensions (mm)
Ø: 291 x D: 83 mm
Net Weight (KG)
0.81 kg
Barcode
5055807625227
Box Dimensions (mm)
L: 296 x W: 296 x D: 128 mm
Box Gross Weight (KG)
0.97 kg
Units/Outer Carton
10
Outer Carton Barcode
15055807625224
Outer Carton Dimensions (mm)
L: 662 x W: 310 x D: 605 mm
Outer Carton Gross Weight (KG)
11.8 kg

Downloads

FILENAME
SINGLE DOWNLOAD
ADD TO ZIP
Polo Combi Instructions
PCB13/MS-CCT Spec Sheet
PCB13/MS-CCT LDT Files
Download ZIP
