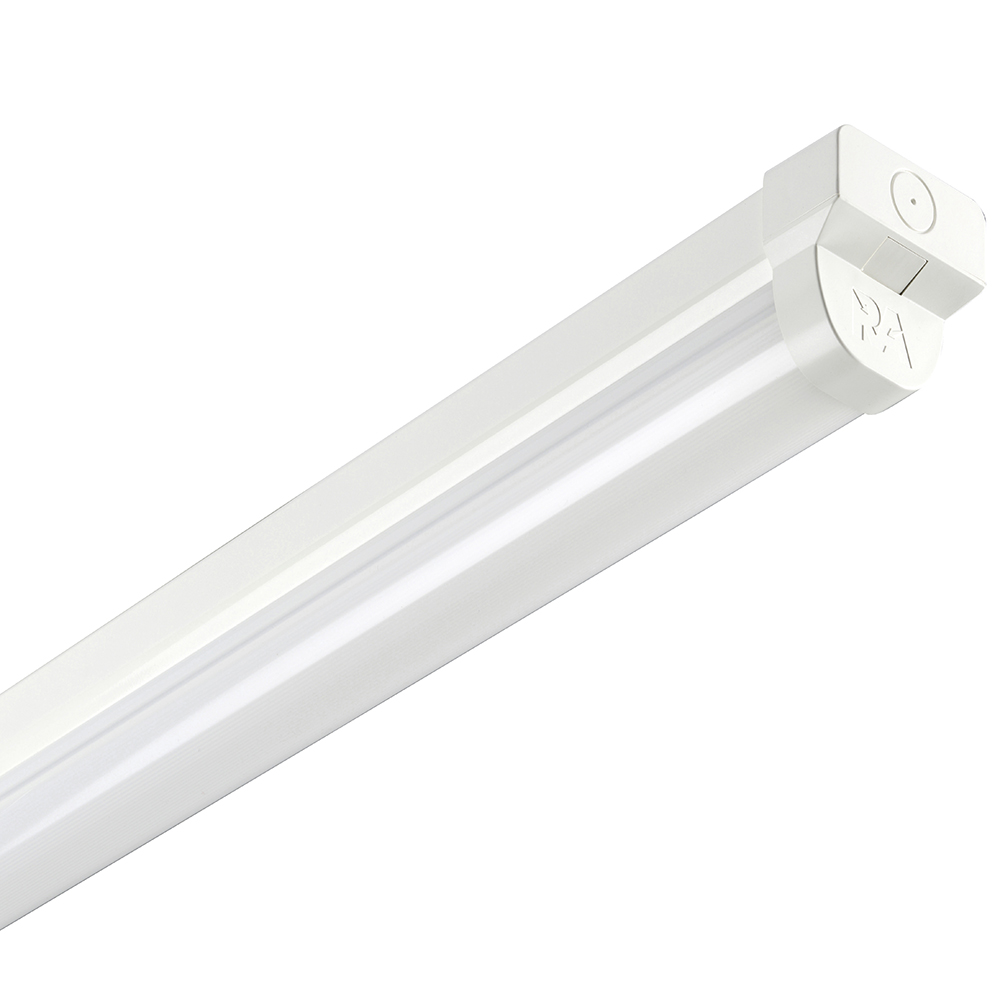

Sabre CCT LED Batten

Sabre CCT LED Batten

The SB52-CCT is a sleek LED batten which sets the new standard.

  • Distinctive and attractive sleek design
  • Built in selectable CCT – 3000K, 4000K & 6000K
  • High efficacy – 130 lm/W
  • BESA fixings and tool-free diffuser removal
  • Microwave detector version available. Contact our sales team to order.

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
SB52-CCT
Wattage
55W
Lumen Output
7150 lm
Efficacy
130 lm/W
Colour Appearance (CCT)
3000K 4000K 6000K Selectable
Frequency
50/60Hz
Colour Rendition (CRI)
Ra > 80
Driver Type
Fixed Output
Colour Finish
White RAL9016
Guarantee
5 Years
Voltage
220-240V
IP Rating
IP20
IK Rating
IK06
LED Life Expectancy
L70B50 50,000 Hours
Power Factor
> 0.9
Working Temperature
-20°C to 45°C
Electrical Class
Class I
Approval
UKCA & CE
Material (Body/Housing)
Steel
Material (Diffuser/Cover)
Polycarbonate
Dimensions (mm)
L: 1500 x W: 67 x D: 68 mm
Net Weight (KG)
1.6 kg
Barcode
5055807624527
Box Dimensions (mm)
L: 1505 x W: 70 x D: 70 mm
Units/Outer Carton
6
Outer Carton Barcode
15055807624524
Outer Carton Dimensions (mm)
L: 1520 x W: 225 x D: 155 mm

Downloads

FILENAME
ADD TO ZIP
Sabre CCT Instructions
SB52-CCT Spec Sheet
SB52-CCT LDT Files
