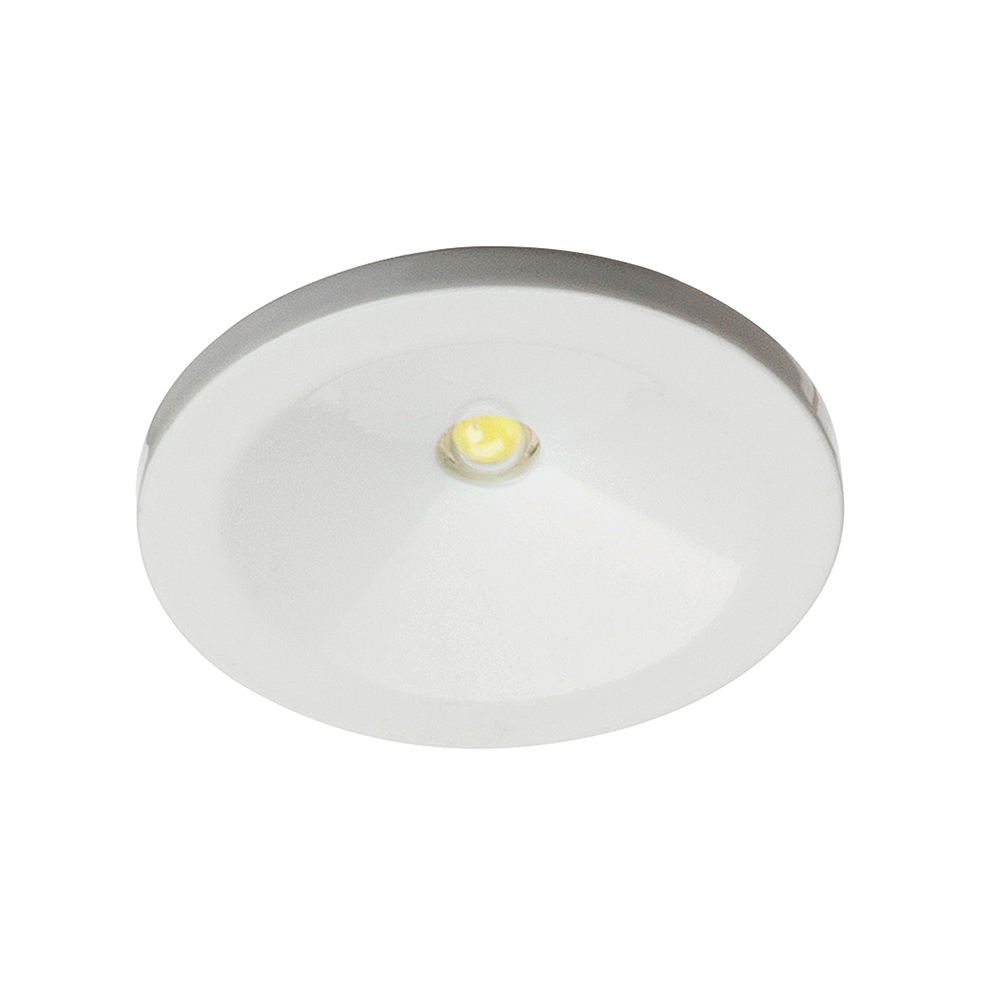

Red Arrow Circular LED Emergency Downlight Detail
Red Arrow Circular LED Emergency Downlight Dimensions
Back

*LED Emergency Downlight

This product has been discontinued and replaced by our Sentinel Pro Emergency LED Downlights.

You can still find instructions and spec sheet information for this discontinued product below.

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
LFLEDW1.5WNM
Wattage
1.5W
Lumen Output
117 lm (N/M)
Emergency Lumen Output
117 lm
Colour Appearance (CCT)
6000K
Frequency
50Hz
Colour Rendition (CRI)
Ra > 70
Emergency Battery Type
Ni-Cd
Colour Finish
White (Downlight Head)
Warranty
2 Years
Emergency Battery Warranty
1 Year
Voltage
230V
IP Rating
IP20
LED Life Expectancy
L70B50 35,000 Hours
Working Temperature
0°C to 40°C
EM Working Temperature
0°C to 40°C
Electrical Class
Class I
Approval
UKCA CE
Material (Body/Housing)
Aluminium
Dimensions (mm)

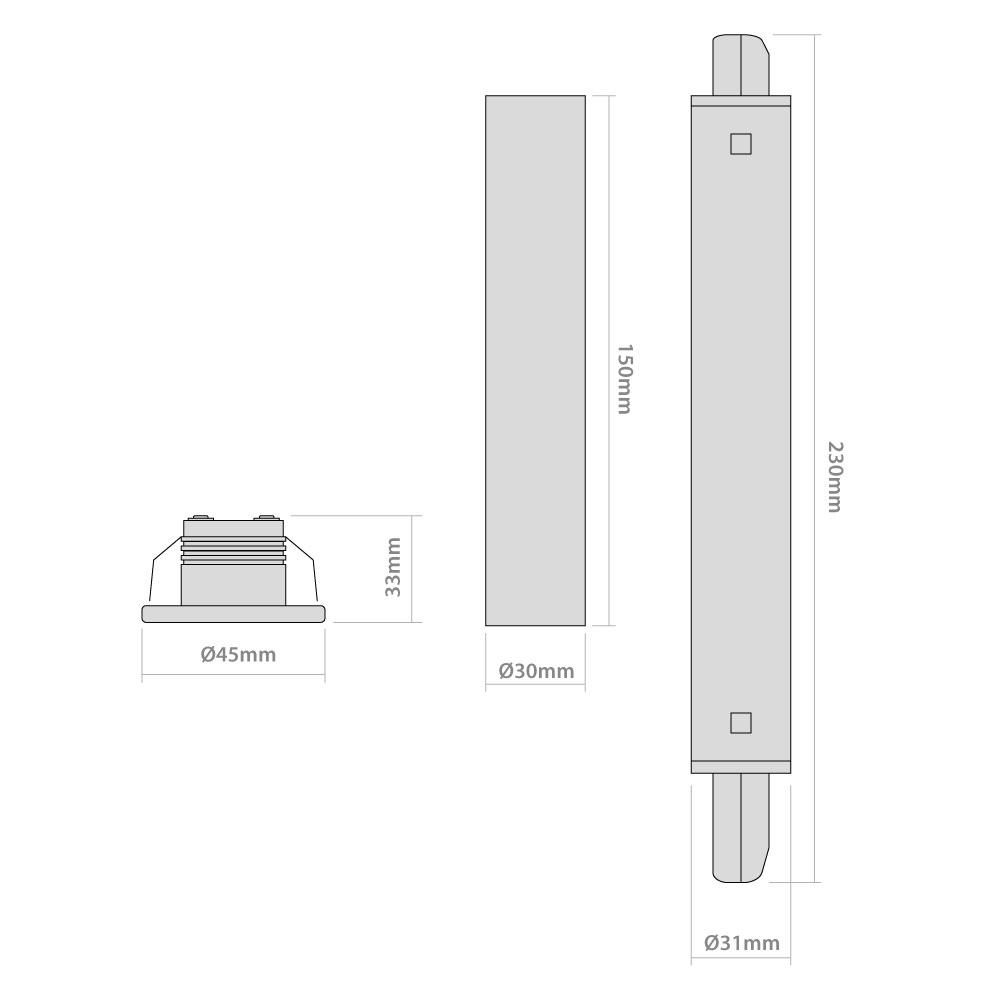

PCB Housing: Ø: 31 x L: 230 mm Battery: Ø: 30 x L: 150 mm Lamp Head: Ø: 45 x D: 33 mm
Net Weight (KG)
0.34 kg
Barcode
5055807620680
Box Dimensions (mm)
L: 78 x W: 47 x D: 265 mm
Box Gross Weight (KG)
0.4 kg
Units/Outer Carton
20
Outer Carton Barcode
15055807620687
Outer Carton Dimensions (mm)
L: 415 x W: 275 x D: 210 mm
Outer Carton Gross Weight (KG)
8 kg

Emergency Non-Maintained Circular Fitting White 1.5W LED
