Connectable Festoon Kit 10 Way 22m

Connectable Festoon Kit 10 Way 22m

This innovative 22m, 10 LED head 110v festoon kit features unique plug and play connectors, allowing the festoon to be extended simply and quickly as required, up to a maximum of 200m in length.

  • Designed in the UK by Red Arrow
  • Extendable up to 200m long
  • Robust, high efficiency LED heads
  • Pre-wired with industrial 3 pin plug
  • IK07 rated for site applications



Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
FKF2250W
Wattage
50W
Lumen Output
5500 lm
Efficacy
110 lm/W
Energy class
E
Colour Appearance (CCT)
6000K
Frequency
50Hz
Colour Rendition (CRI)
Ra > 80
Driver Type
Fixed Output
Colour Finish
Yellow
Guarantee
2 Years
Voltage
110V
IP Rating
IP44
IK Rating
IK07
LED Life Expectancy
L70B50 35,000 Hours
Power Factor
0.9
Working Temperature
-20°C to 40°C
Electrical Class
Class I
Approval
UKCA & CE
Material (Body/Housing)
Polycarbonate
Material (Diffuser/Cover)
Polycarbonate

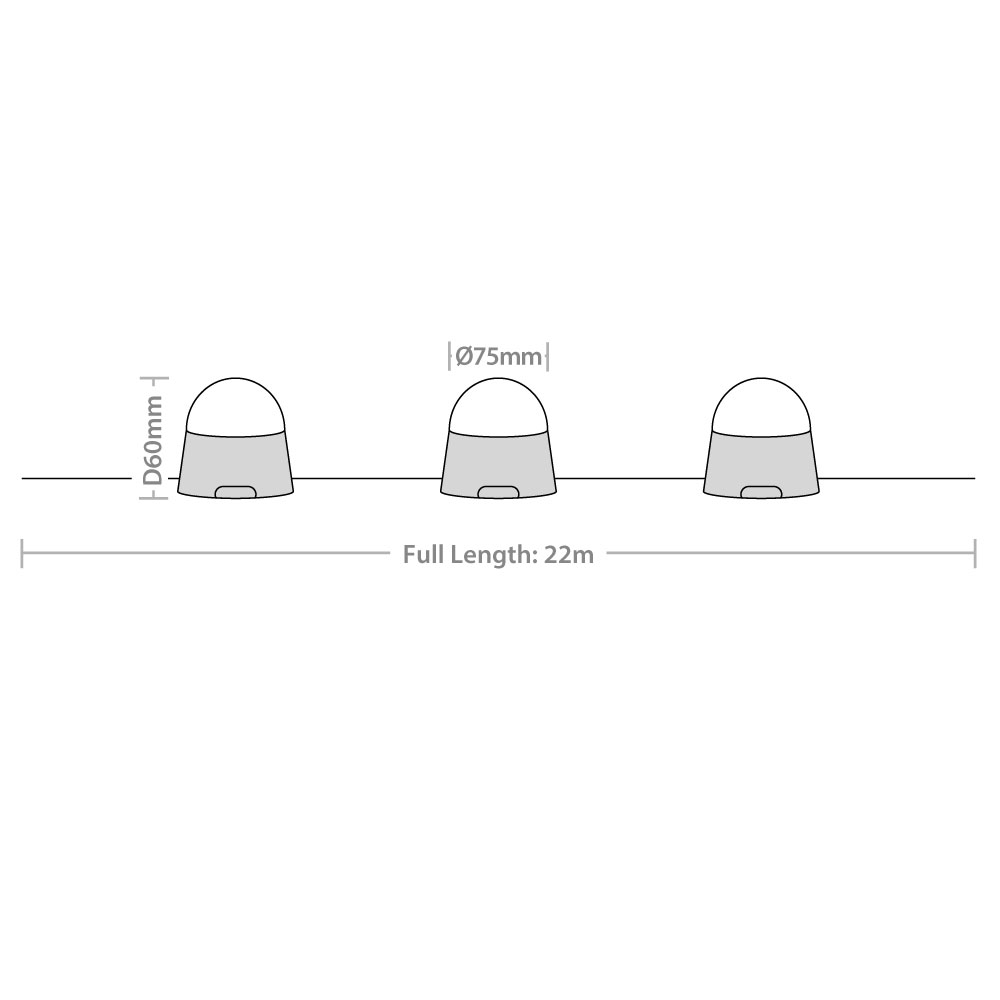

Dimensions (mm)
L: 22m Head: H: 60 x Ø: 75 mm
Net Weight (KG)
2.2 kg
Barcode
5055807624350
Box Dimensions (mm)
L: 250 x W: 250 x D: 140 mm
Box Gross Weight (KG)
4.7 kg
Units/Outer Carton
4
Outer Carton Barcode
15055807624357
Outer Carton Dimensions (mm)
L: 600 x W: 300 x D: 600 mm
Outer Carton Gross Weight (KG)
10 kg

Downloads

FILENAME
ADD TO ZIP
Connectable Festoon Kit Instructions
FKF2250W Spec Sheet
FKF2250W LDT File
