*EBM LED Emergency Exit Box Maintained/Non-Maintained 2.7W 6000K

Red Arrow EBM LED Emergency Exit Box

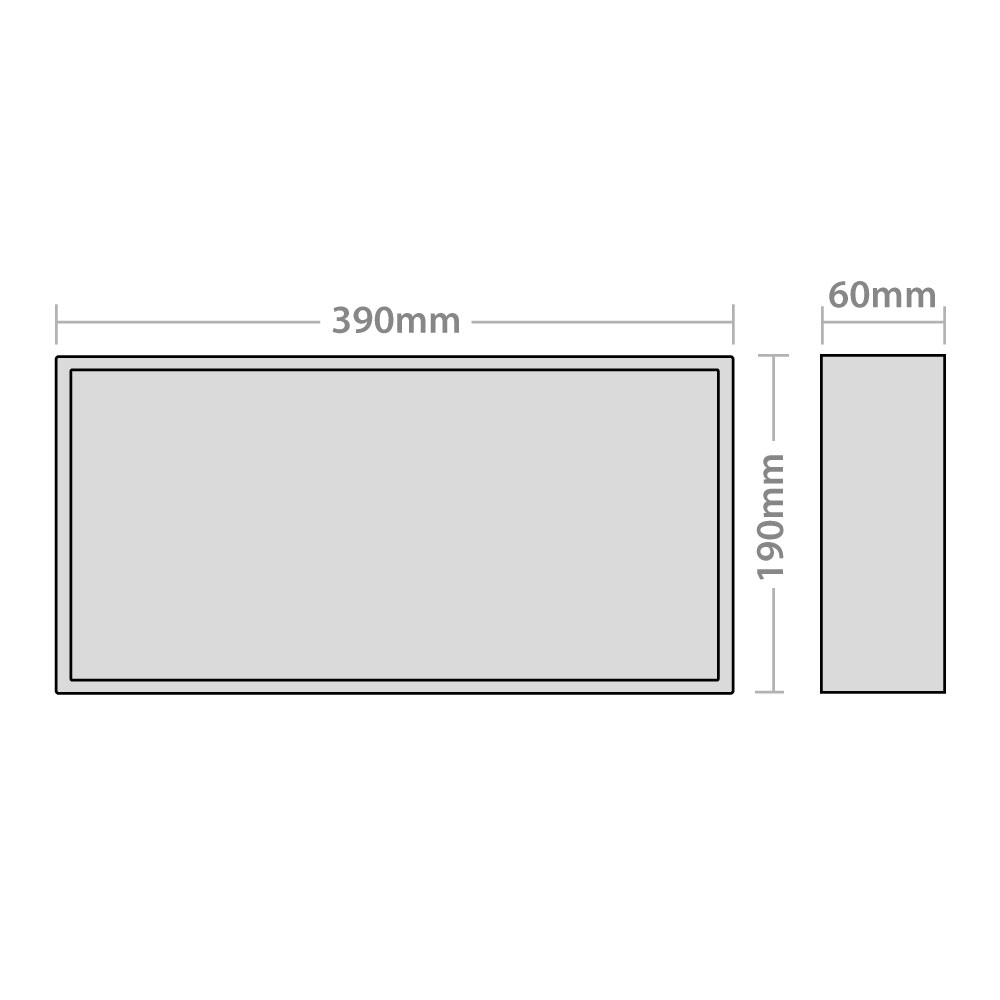

Red Arrow EBM LED Emergency Exit Box Dimensions
Back

*EBM LED Emergency Exit Box Maintained/Non-Maintained 2.7W 6000K

This product has been discontinued and replaced by our Artemis Emergency LED Exit Sign.

You can still find instructions and spec sheet information for this discontinued product below.

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
EBMLED
Wattage
2.7W
Colour Appearance (CCT)
6000K
Frequency
50Hz
Colour Rendition (CRI)
Ra > 70
Driver Type
Fixed Output
Emergency Battery Type
Ni-Cd
Colour Finish
White
Warranty
1 Year
Emergency Battery Warranty
1 Year
Voltage
230V
IP Rating
IP20
IK Rating
IK10
LED Life Expectancy
L70B50 60,000 Hours
Working Temperature
0°C to 40°C
EM Working Temperature
0°C to 40°C
Electrical Class
Class I
Approval
UKCA CE
Material (Body/Housing)
Steel
Material (Diffuser/Cover)
Polycarbonate
Dimensions (mm)
L: 390 x W: 190 x D: 60 mm
Net Weight (KG)
1.3 kg
Barcode
5055807603355
Box Dimensions (mm)
L: 70 x W: 400 x D: 205 mm
Box Gross Weight (KG)
1.4 kg
Units/Outer Carton
6
Outer Carton Barcode
15055807603352
Outer Carton Dimensions (mm)
L: 410 x W: 230 x D: 440 mm
Outer Carton Gross Weight (KG)
9.0 kg

Exit Box LED – Maintained c/w Up Arrow legend

Downloads

FILENAME
SINGLE DOWNLOAD
ADD TO ZIP
EBM Exit Box Instructions
EBM Exit Box Spec Sheet
Download ZIP
