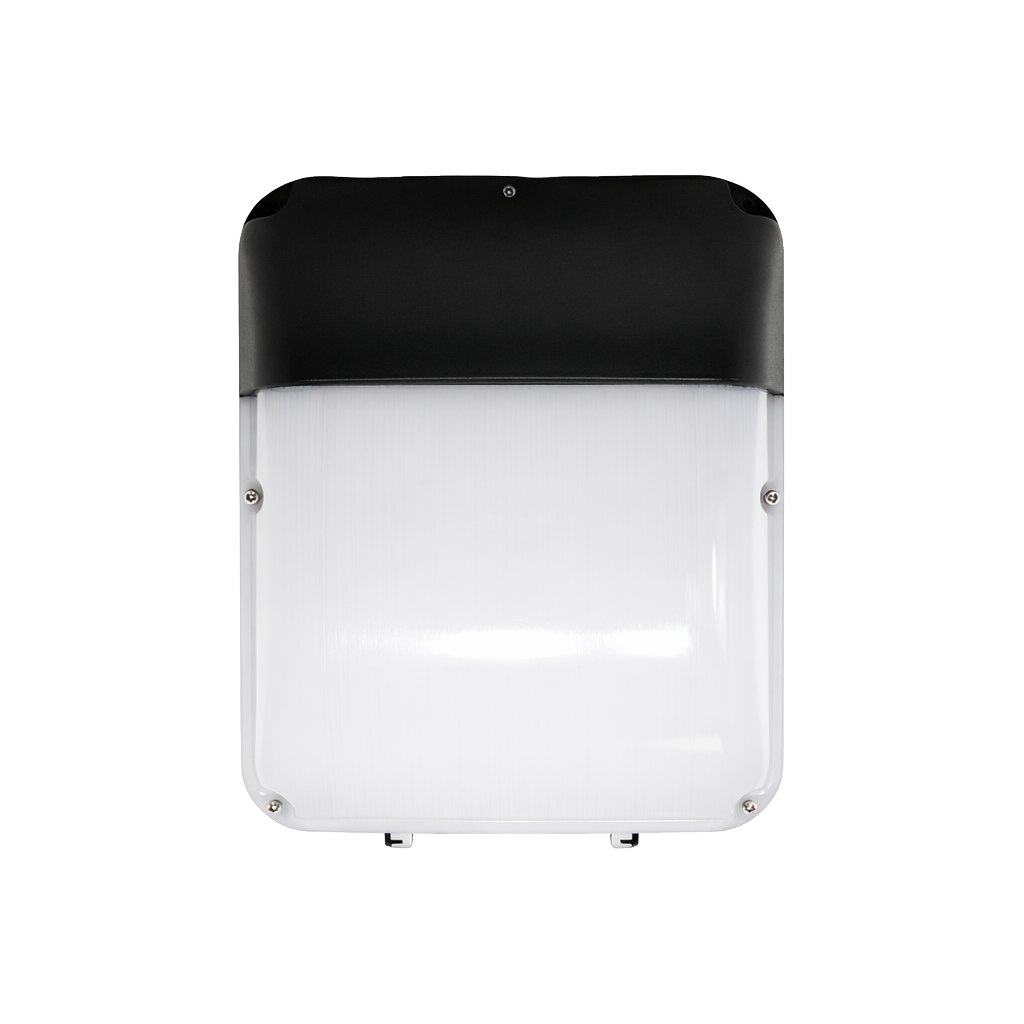

Fusion LED Wallpack - Image 2
Red Arrow 1 Year On-Site Warranty
Back

Fusion LED Wallpack

The FUS/18-30W/CCT is designed to be versatile, robust, and durable, making it an excellent option for outdoor lighting needs.

  • Shallow profile design
  • Tough IK10 rated
  • IP65 for exposed outdoor environments

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
FUS/18-30W/CCT
Wattage
18W | 22W | 26W | 30W
Lumen Output
2160lm | 2640lm | 3120lm | 3600lm
Efficacy
120 lm/W
Energy class
E
Colour Appearance (CCT)
3000K | 4000K | 6000K
Frequency
50/60Hz
Colour Rendition (CRI)
Ra >80
Driver Type
Wattage Selectable
Colour Finish
Black
Warranty
5 Years
Voltage
220-240V
IP Rating
IP65
IK Rating
IK10
LED Life Expectancy
L70B50 50,000 Hours
Power Factor
>0.9
Working Temperature
-20°C to 50°C
Beam Angle
110°
Electrical Class
Class II
Approval
UKCA CE
Material (Body/Housing)
Polycarbonate
Material (Diffuser/Cover)
Polycarbonate
Dimensions (mm)
L: 317 x W: 264 x D: 115 mm
Net Weight (KG)
0.92 kg
Barcode
5055807630825
Box Dimensions (mm)
L: 268 x W: 118 x D: 320 mm
Box Gross Weight (KG)
1.1 kg
Units/Outer Carton
10
Outer Carton Barcode
15055807630822
Outer Carton Dimensions (mm)
L: 620 x W: 290 x D: 660 mm
Outer Carton Gross Weight (KG)
13.5 kg

Downloads

FILENAME
SINGLE DOWNLOAD
ADD TO ZIP
FUS/18-30W/CCT Datasheet
FUS/18-30W/CCT Instructions
