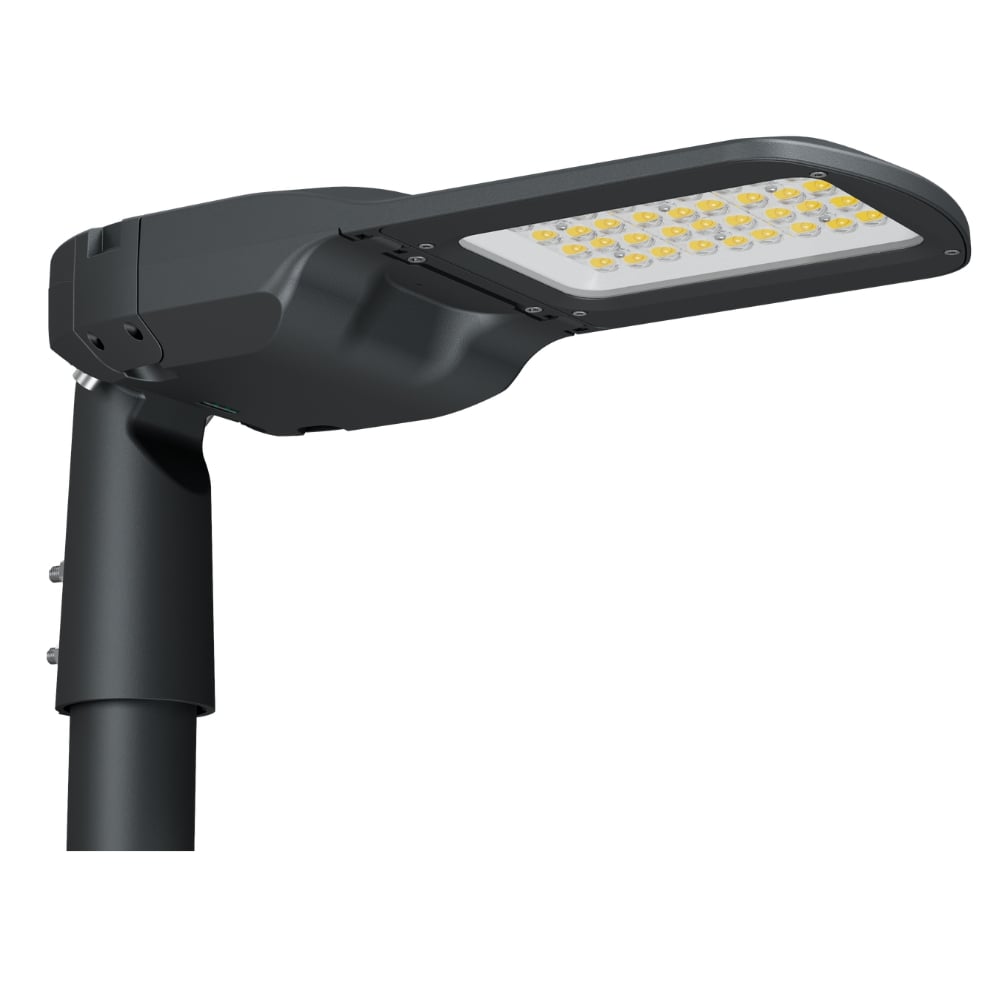

Gravix Street Light

The GRX/20-60W/T3/N3/CCT is the latest generation of LED street lighting.

  • 10Kva Surge Protection
  • NEMA 3 Socket and Low Profile Blanking Plug
  • Prewired 6m Cable & Connector
  • 500hr Salt Spray Protection
  • 76mm Mounting Spigot as Standard (60mm Spigot Accessory Available)

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
GRX/20-60W/T3/N3/CCT
Wattage
20-60W
Lumen Output
3400lm | 6800lm | 10200lm
Efficacy
170 lm/W
Energy class
C
Colour Appearance (CCT)
3000K | 4000K | 5000K
Frequency
50/60Hz
Colour Rendition (CRI)
Ra >70
Driver Type
Fixed
Sensor Type
NEMA 3
Colour Finish
Anthracite RAL7016
Warranty
5 Years
Voltage
120-277V
IP Rating
IP66
IK Rating
IK08
LED Life Expectancy
102,000 Hours
Power Factor
>0.9
Working Temperature
-30ËšC to +50ËšC
Beam Angle
Type III (140Ëš x 80Ëš)
Electrical Class
Class I
Approval
UKCA CE
Material (Body/Housing)
Die-Cast Aluminium
Material (Diffuser/Cover)
Polycarbonate
Dimensions (mm)
L: 568 x W: 200 x D: 109 mm
Net Weight (KG)
4.5 kg
Barcode
5055807629669
Box Dimensions (mm)
L: 603 x W:235 x D: 135 mm
Box Gross Weight (KG)
5.11 kg
Units/Outer Carton
1
Outer Carton Gross Weight (KG)
5.11 kg

Downloads

FILENAME
SINGLE DOWNLOAD
ADD TO ZIP
GRX/20-60W/T3/N3/CCT Datasheet
GRX/20-60W/T3/N3/CCT Instructions
