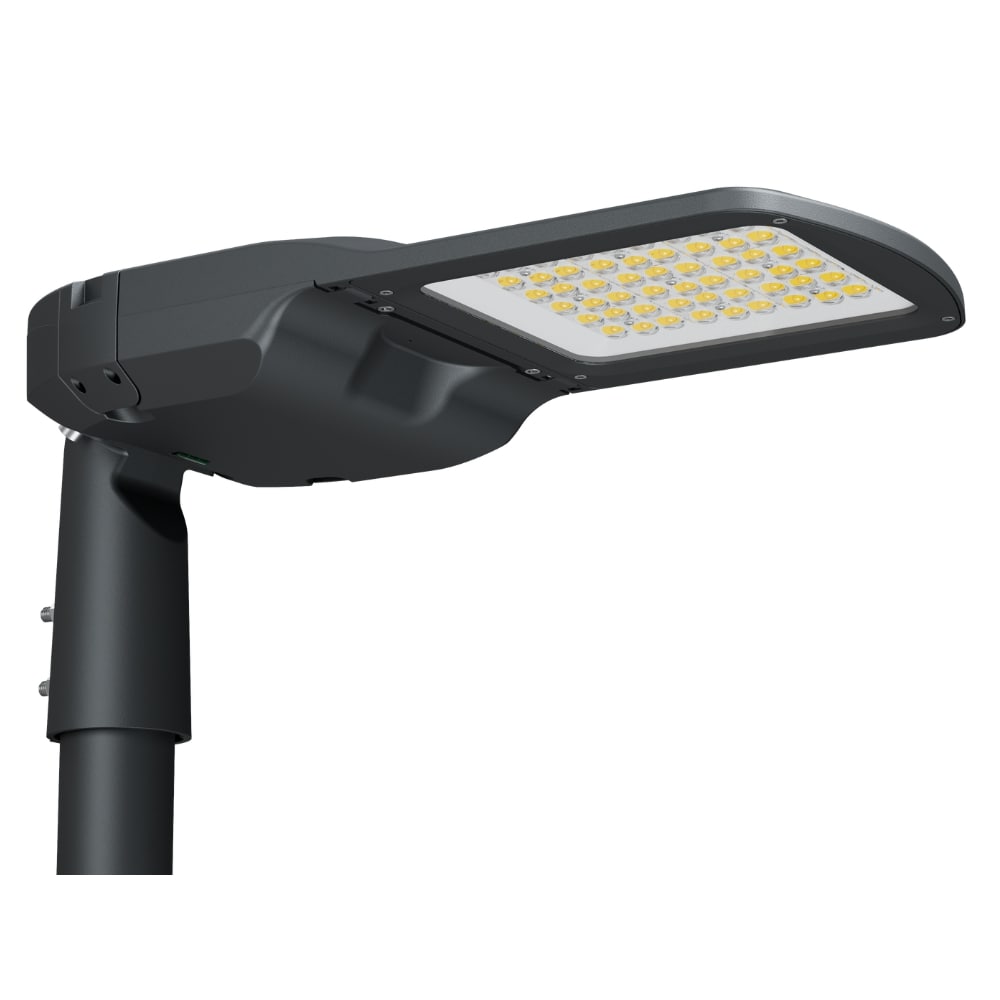

Gravix Street Light

The GRX/80-100W/T3/N3/CCT is the latest generation of LED street lighting.

  • 10Kva Surge Protection
  • NEMA 3 Socket and Low Profile Blanking Plug
  • Prewired 6m Cable & Connector
  • 500hr Salt Spray Protection
  • 76mm Mounting Spigot as Standard (60mm Spigot Accessory Available)

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
GRX/80-100W/T3/N3/CCT
Wattage
80W | 100W
Lumen Output
13600lm | 17000lm
Efficacy
170 lm/W
Energy class
C
Colour Appearance (CCT)
3000K | 4000K | 5000K
Frequency
50/60Hz
Colour Rendition (CRI)
Ra >70
Driver Type
Fixed
Sensor Type
NEMA 3
Colour Finish
Anthracite RAL7016
Warranty
5 Years
Voltage
120-277V
IP Rating
IP66
IK Rating
IK08
LED Life Expectancy
102,000 Hours
Power Factor
>0.9
Working Temperature
-30ËšC to +50ËšC
Beam Angle
Type III (140Ëš x 80Ëš)
Electrical Class
Class I
Approval
UKCA CE
Material (Body/Housing)
Die-Cast Aluminium
Material (Diffuser/Cover)
Polycarbonate
Dimensions (mm)
L: 613 x W: 240 x D: 109 mm
Length (mm)
613
Width (mm)
240
Depth (mm)
109
Net Weight (KG)
5.15 kg
Barcode
5055807629676
Box Dimensions (mm)
L: 646 x W:275 x D: 135 mm
Box Gross Weight (KG)
5.95 kg
Units/Outer Carton
1

Downloads

FILENAME
SINGLE DOWNLOAD
ADD TO ZIP
GRX/80-100W/T3/N3/CCT Datasheet
GRX/80-100W/T3/N3/CCT Instructions
Gravix LDT Files
Download ZIP
