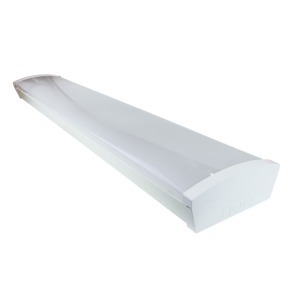

Harvard Twin LED Batten

Harvard Surface & Suspended Linear Twin Batten LED Light Plug & Play 3Hr EM and Microwave Sensors Selectable Power and CCT Available in DALI High Efficacy upto 120lm/w
Back

Harvard Twin LED Batten

The HAR5/27-47/3CCT/UGR19/V2 is a modern and minimalistic linear twin batten designed for indoor applications requiring low glare.

  • Features Plug & Play Emergency and Microwave Sensors
  • 7 Year Warranty
  • Can be suspended or Surface Mounted
  • UGR<19

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
HAR5/27-47/3CCT/UGR19/V2
Wattage
27W | 34W | 40W | 47W
Lumen Output
3240lm | 4080lm | 4800lm | 5760lm
Efficacy
120 lm/W
Energy class
C
Colour Appearance (CCT)
3000K | 4000K | 6500K
Frequency
50/60Hz
Colour Rendition (CRI)
Ra >80
Driver Type
Fixed
Colour Finish
White RAL9003
Warranty
7 Years
Voltage
180-264V
IP Rating
IP20
IK Rating
IK08
LED Life Expectancy
L70B50 170,000 Hours
Power Factor
0.95
Working Temperature
-20°C to 60°C
Electrical Class
Class I
Approval
UKCA CE
Material (Body/Housing)
Steel
Material (Diffuser/Cover)
Polycarbonate
Dimensions (mm)
L: 1478 x W: 205 x H: 87 mm
Net Weight (KG)
3 kg
Barcode
5055807630689
Box Dimensions (mm)
L:1490 x W: 210 x D: 90 mm
Box Gross Weight (KG)
3.4 kg
Units/Outer Carton
6
Outer Carton Barcode
15055807630686
Outer Carton Dimensions (mm)
L:1505 x W: 430 x D: 285 mm
Outer Carton Gross Weight (KG)
21.4 kg

Downloads

FILENAME
SINGLE DOWNLOAD
ADD TO ZIP
HAR5/27-47/3CCT/UGR19/V2 Datasheet
HAR5/27-47/3CCT/UGR19/V2 Instructions
Download ZIP
