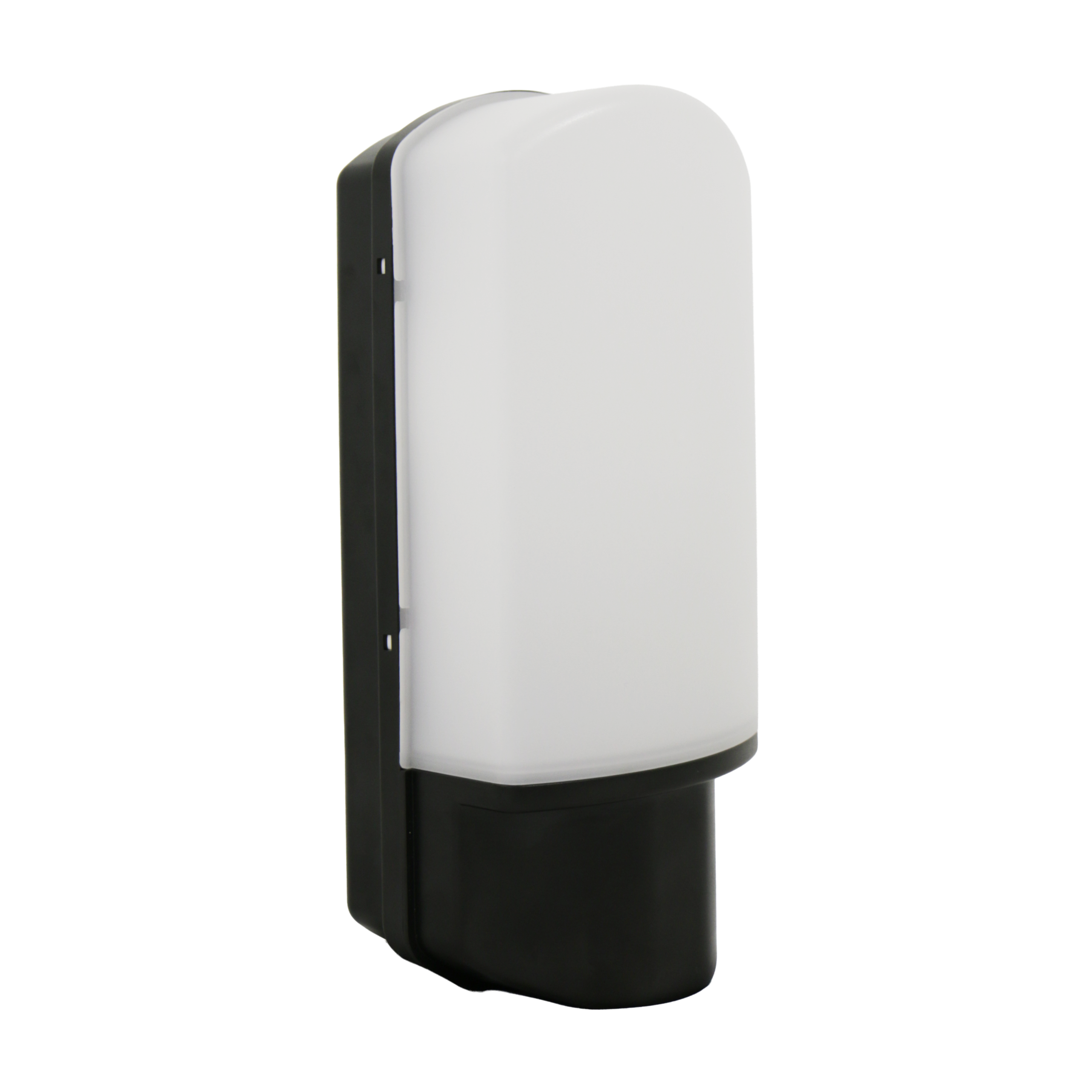

Helix Wall Light

The HEL/9/CCT/PC can distinguish between natural and LED light.

  • Strong polycarbonate construction
  • Integral dusk to dawn smart photocell
  • Energy saving automatic switching

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
HEL/9/CCT/PC
Wattage
9W
Lumen Output
900lm
Efficacy
100 lm/W
Energy class
F
Frequency
50-60Hz
Colour Rendition (CRI)
Ra >80
Driver Type
Fixed Output
Sensor Type
Photocell
Colour Finish
Black
Warranty
3 Years
Voltage
220-230V
IP Rating
IP65
IK Rating
IK10
Power Factor
0.5
Working Temperature
-20°C to 50°C
Electrical Class
Class II
Approval
UKCA CE
Material (Body/Housing)
Polycarbonate
Material (Diffuser/Cover)
Polycarbonate
Dimensions (mm)
L: 265 x W: 115 x D: 91 mm
Net Weight (KG)
0.41 kg
Barcode
5055807631150
Box Dimensions (mm)
L: 268 x W: 117 x D: 100 mm
Box Gross Weight (KG)
0.51 Kg
Units/Outer Carton
20
Outer Carton Barcode
15055807631157
Outer Carton Dimensions (mm)
L: 570 x W: 490 x D: 290 mm
Outer Carton Gross Weight (KG)
10.5 Kg
