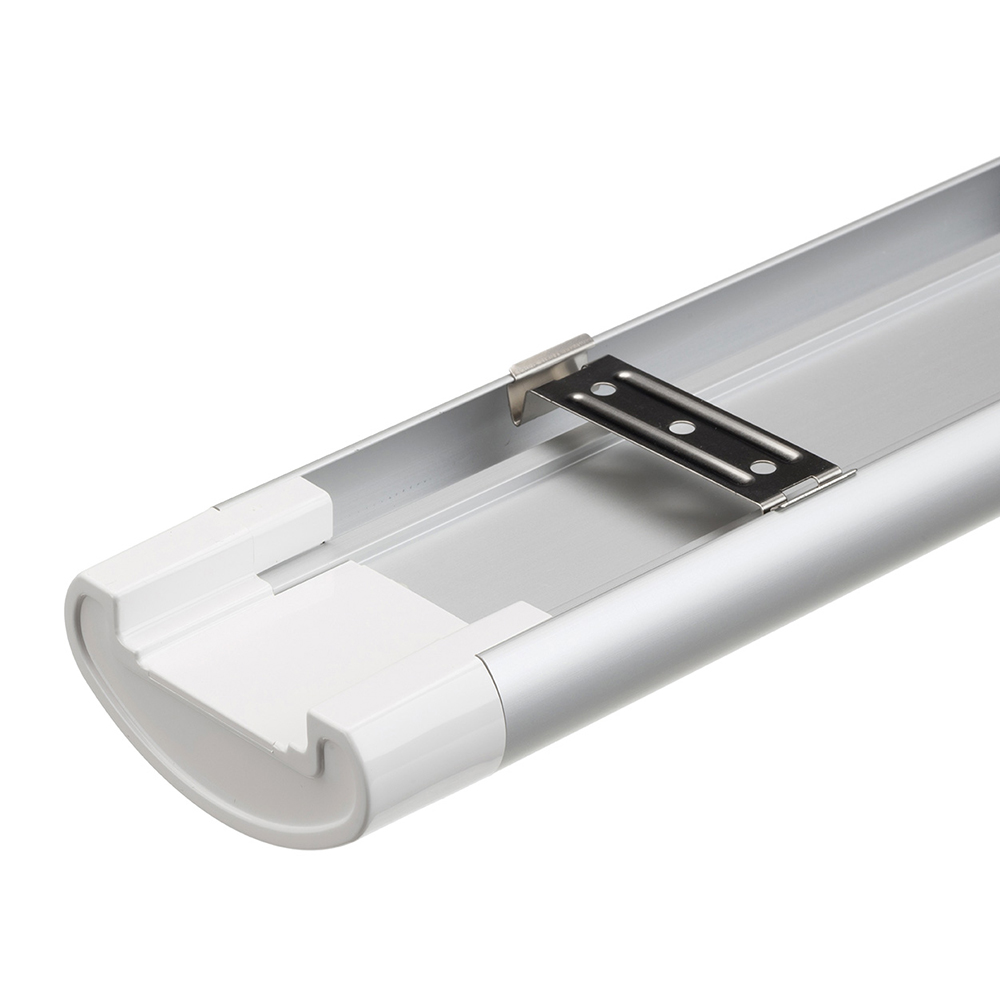

Red Arrow Linear LED Slimline Surface Fitting Detail
Red Arrow Linear LED Slimline Surface Fitting Dimensions
Red Arrow Linear Energy Label
Red Arrow 1 Year On-Site Warranty
Back

Linear LED Surface Fitting

The LINA220W-40 is a stylish, shallow profile surface luminaire.

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
LINA220W-40
Wattage
20W
Lumen Output
1700 lm
Efficacy
85 lm/W
Energy class
F
Colour Appearance (CCT)
4000K
Frequency
50/60Hz
Colour Rendition (CRI)
Ra > 80
Driver Type
Fixed Output
Colour Finish
Satin Silver/White
Warranty
3 Years
Voltage
100-240V
IP Rating
IP40
IK Rating
IK08
LED Life Expectancy
L70B50 35,000 Hours
Power Factor
>0.9
Working Temperature
-20°C to 40°C
Electrical Class
Class I
Approval
UKCA & CE
Material (Body/Housing)
Aluminium
Material (Diffuser/Cover)
Polycarbonate
Dimensions (mm)
L: 580 x W: 80 x D: 36 mm
Length (mm)
580
Width (mm)
80
Depth (mm)
36
Net Weight (KG)
0.59 kg
Barcode
5055807618168
Box Dimensions (mm)
L: 610 x W: 84 x D: 38 mm
Box Gross Weight (KG)
0.68 kg
Units/Outer Carton
20
Outer Carton Barcode
15055807618165
Outer Carton Dimensions (mm)
L: 630 x W: 360 x D: 215 mm
Outer Carton Gross Weight (KG)
14 kg

Downloads

FILENAME
SINGLE DOWNLOAD
ADD TO ZIP
Linear Instructions
LINA220W-40 Spec Sheet
LINA220W-40 LDT File
Download ZIP
