Name: Norma CCT LED Batten
SKU: NOR5-54W-CCT

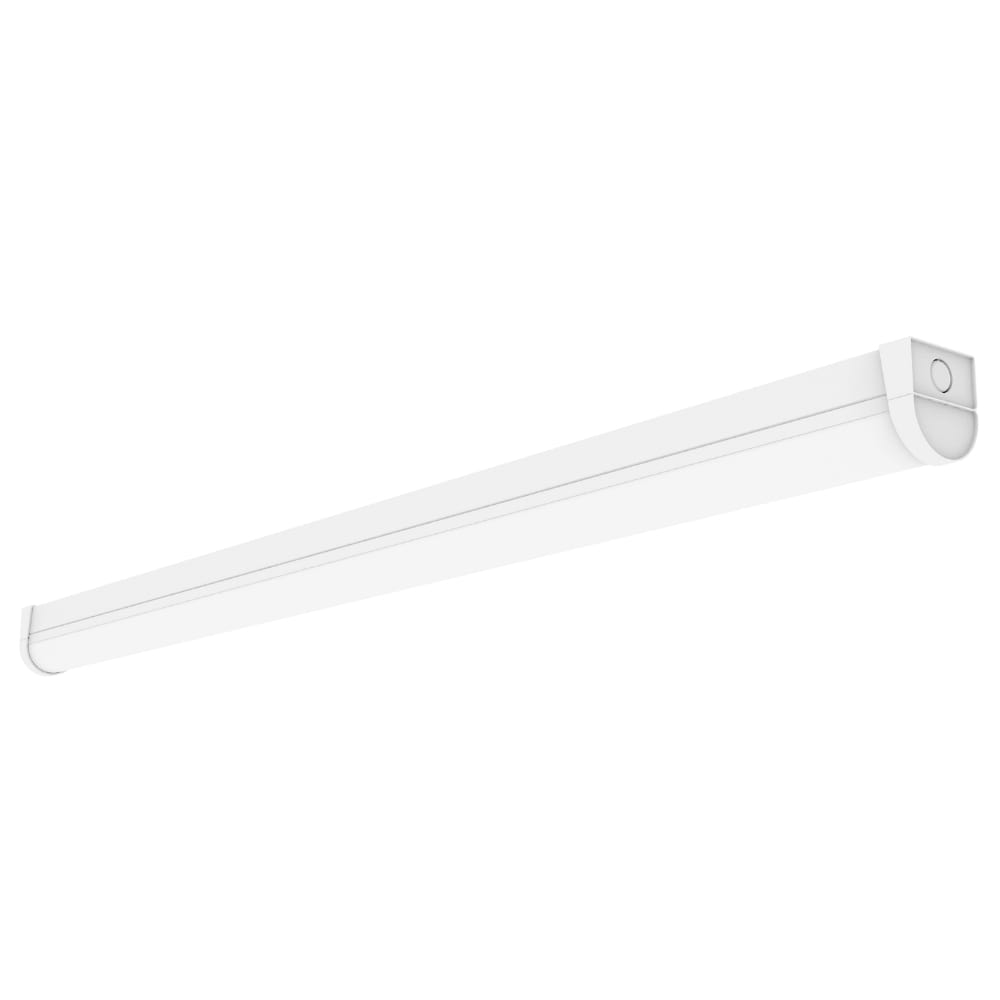

Norma CCT LED Batten

The NOR5-54W-CCT is a CCT and wattage selectable LED batten.

Features Plug & Play Emergency and Microwave Sensor
Hinged gear tray for quick and easy installation
Selectable CCT – 3000K, 4000K, 6000K
High Efficacy – 150lm/W
BESA fixings and tool free removal

Speak to your local account manager

Add to spec

Added

Product Code

NOR5-54W-CCT

Wattage

32W | 35W | 44W | 54W

Lumen Output

4800lm | 5250lm | 6600lm | 8100lm

Efficacy

150 lm/W

Colour Appearance (CCT)

3000K | 4000K | 6000K

Frequency

50/60Hz

Colour Rendition (CRI)

Ra >80

Driver Type

Fixed Output

Colour Finish

White RAL9003

Warranty

5 Years

Voltage

220-240V

IP Rating

IP20

IK Rating

IK08

LED Life Expectancy

L70B50 50,000 Hours

Power Factor

> 0.9

Working Temperature

-20°C to 45°C

Electrical Class

Class I

Approval

UKCA CE

Material (Body/Housing)

Steel

Material (Diffuser/Cover)

Polycarbonate

Dimensions (mm)

L: 1470 x W: 61 x D: 71 mm

Net Weight (KG)

1.5 kg

Barcode

5055807629980

Box Dimensions (mm)

L: 1475 x W: 65 x D: 75 mm

Box Gross Weight (KG)

1.68 kg

Units/Outer Carton

Outer Carton Barcode

15055807629987

Outer Carton Dimensions (mm)

L: 1490 x W: 295 x D: 175 mm

Outer Carton Gross Weight (KG)

13 kg
