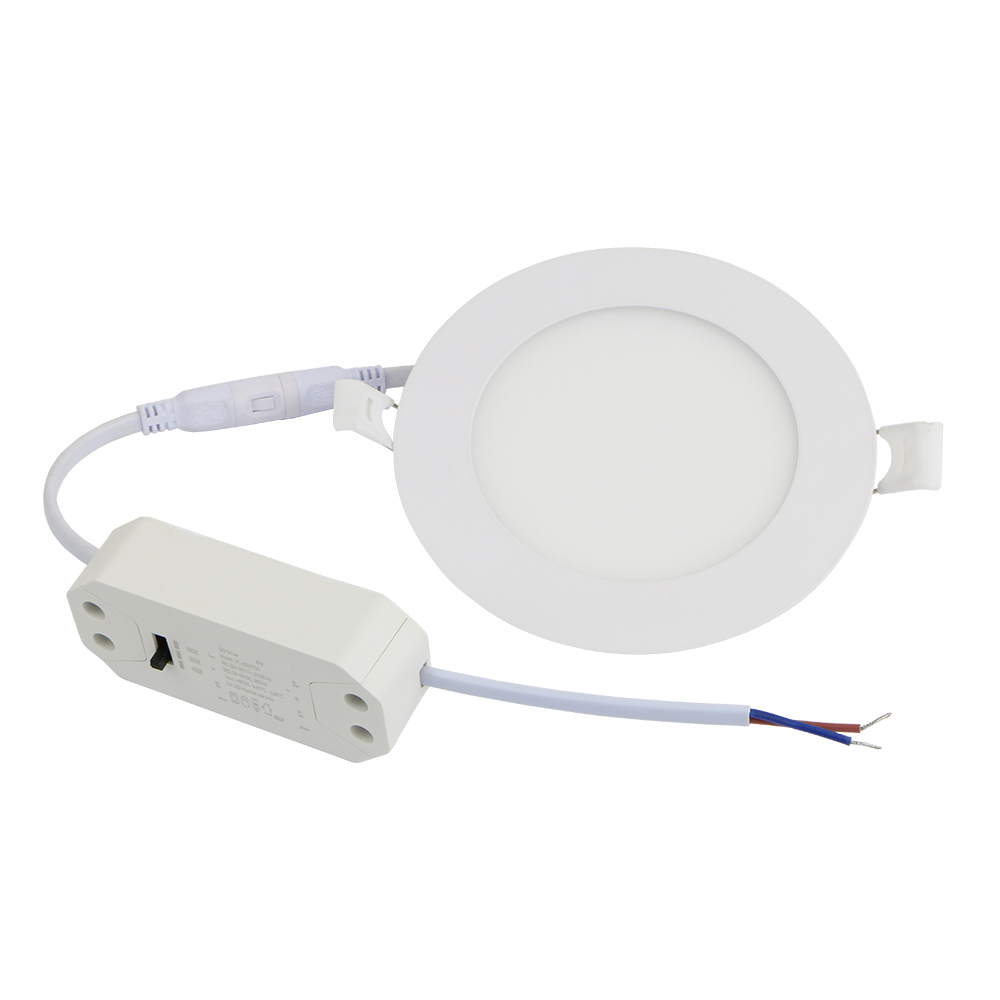

Orbit CCT 6W LED Downlight

Red Arrow ORB6-CCT-V2
Back

Orbit CCT 6W LED Downlight

The ORB6-CCT-V2 is a highly versatile downlight where cost is the primary consideration.

  • Ultra shallow profile and stylish aesthetics
  • Colour Selectable 3000K | 4000K | 6000K
  • Die-cast aluminium body and TP(b) diffuser
  • Dimmable drivers available
  • Emergency option available

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
ORB6-CCT-V2
Wattage
6W
Lumen Output
480lm
Efficacy
80 lm/W
Energy class
F
Colour Appearance (CCT)
3000K | 4000K | 6000K
Frequency
50/60Hz
Colour Rendition (CRI)
Ra >80
Driver Type
Fixed Output
Colour Finish
White RAL9003
Warranty
3 Years
Voltage
220-240V
IP Rating
IP20
LED Life Expectancy
30000
Power Factor
0.5
Working Temperature
-20 - 40°C
Beam Angle
120
Electrical Class
Class II
Approval
UKCA CE
Material (Body/Housing)
Die-Cast Aluminium
Material (Diffuser/Cover)
TP(b) Styrene
Dimensions (mm)
Ø: 118 x D: 17 mm
Cut out (mm)
100
Net Weight (KG)
0.15 kg
Barcode
5055807631235
Box Dimensions (mm)
L: 125 x W: 125 x D: 45 mm
Box Gross Weight (KG)
0.18 kg
Units/Outer Carton
40
Outer Carton Barcode
15055807631232
Outer Carton Dimensions (mm)
L: 522 x W: 250 x D: 272 mm
Outer Carton Gross Weight (KG)
8.44 kg

Downloads

FILENAME
SINGLE DOWNLOAD
ADD TO ZIP
ORB6-CCT-V2 Datasheet
Download ZIP
