*Orbit LED Downlights

This product has been discontinued.

You can still find instructions and spec sheet information for this discontinued product below.

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
ORB18-30
Wattage
18W
Lumen Output
1440 lm
Efficacy
80 lm/W
Energy class
G
Colour Appearance (CCT)
3000K
Frequency
50/60Hz
Colour Rendition (CRI)
Ra > 80
Driver Type
Fixed Output
Colour Finish
White RAL9003
Guarantee
3 Years
Voltage
230V
IP Rating
IP44 (from below ceiling)
IK Rating
IK04
LED Life Expectancy
L70B50 30,000 Hours
Power Factor
0.9
Working Temperature
-10°C to 50°C
Electrical Class
Class II
Approval
UKCA CE
Material (Body/Housing)
Die-Cast Aluminium
Material (Diffuser/Cover)
TP(b) Styrene
Dimensions (mm)
Ø: 225 x D: 34 mm
Cut out (mm)
205
Net Weight (KG)
0.39 kg
Barcode
5055807622387
Box Dimensions (mm)
L: 265 x W: 255 x D: 35 mm
Box Gross Weight (KG)
0.49 kg
Units/Outer Carton
20
Outer Carton Barcode
15055807622384
Outer Carton Dimensions (mm)
L: 750 x W: 277 x D: 295 mm
Outer Carton Gross Weight (KG)
10.1 kg

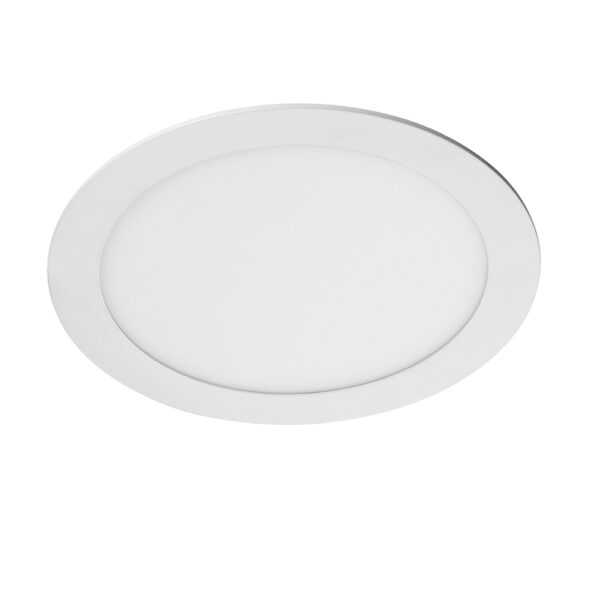

Orbit Recessed Circular Downlight 18W LED 225mm Dia 3000K

Downloads

FILENAME
SINGLE DOWNLOAD
ADD TO ZIP
Orbit Instructions
ORB18-30 Spec Sheet
ORB18-30 LDT File
Download ZIP
