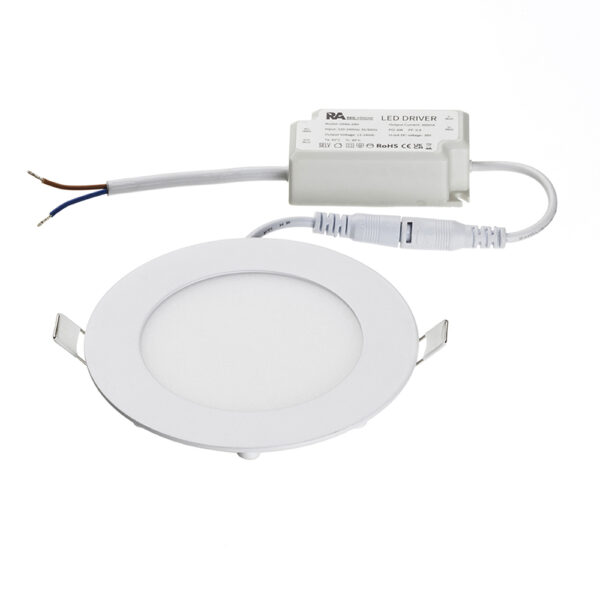

Red Arrow Orbit Recessed LED Downlights with Driver
Red Arrow Orbit Recessed LED Downlights Detail
Red Arrow Orbit Recessed LED Downlights Dimensions
Red Arrow Orbit LED Downlights Energy Label
Back

Orbit LED Downlights

Orbit Recessed Circular Downlight 6W LED 120mm Dia 3000K

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
ORB6-30
Wattage
6W
Lumen Output
450 lm
Efficacy
75 lm/W
Energy class
G
Colour Appearance (CCT)
3000K
Frequency
50/60Hz
Colour Rendition (CRI)
Ra > 80
Driver Type
Fixed Output
Colour Finish
White RAL9003
Guarantee
3 Years
Voltage
230V
IP Rating
IP44 (from below ceiling)
IK Rating
IK04
LED Life Expectancy
L70B50 30,000 Hours
Power Factor
0.9
Working Temperature
-10°C to 50°C
Electrical Class
Class II
Approval
UKCA CE
Material (Body/Housing)
Die-Cast Aluminium
Material (Diffuser/Cover)
TP(b) Styrene
Dimensions (mm)
Ø: 120 x D: 30 mm
Cut out (mm)
108
Net Weight (KG)
0.10 kg
Barcode
5055807622295
Box Dimensions (mm)
L: 160 x W: 145 x D: 35 mm
Box Gross Weight (KG)
0.21 kg
Units/Outer Carton
50
Outer Carton Barcode
15055807622292
Outer Carton Dimensions (mm)
L: 940 x W: 312 x D: 190 mm
Outer Carton Gross Weight (KG)
11.7 kg

Orbit Recessed Circular Downlight 6W LED 120mm Dia 3000K
