Peak LED Mini Wallpack

Peak LED Mini Wallpack

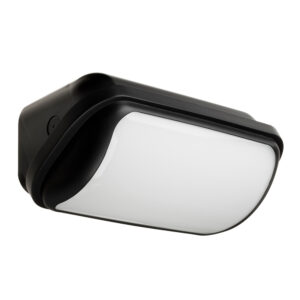

Peak Mini Wallpack 15W 3/4K CCT c/w Photocell & 3h EM

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
PK15EPC-CCT
Wattage
15W
Lumen Output
1500 lm
Efficacy
100 lm/W
Colour Appearance (CCT)
3000K / 4000K Selectable
Frequency
50/60Hz
Colour Rendition (CRI)
Ra > 80
Driver Type
Fixed Output
Emergency Battery Type
LiFePO4
Sensor Type
Photocell
Colour Finish
RAL9005 Black
Guarantee
5 Years
Emergency Battery Guarantee
5 Years
Voltage
220-240V
IP Rating
IP65
IK Rating
IK08
LED Life Expectancy
L70B50 >54,000 Hours
Power Factor
0.95
Working Temperature
5°C to 40°C
EM Working Temperature
5°C to 40°C
Beam Angle
120° Area Flood
Electrical Class
Class I
Approval
UKCA CE
Material (Body/Housing)
Polycarbonate
Material (Diffuser/Cover)
Polycarbonate
Dimensions (mm)
L: 270 x W: 120 x D: 138 mm
Net Weight (KG)
0.860 kg
Barcode
5055807623445
Box Dimensions (mm)
L: 275 x W: 125 x D: 140 mm
Box Gross Weight (KG)
1.0 kg
Units/Outer Carton
20
Outer Carton Barcode
15055807623442
Outer Carton Dimensions (mm)
L: 660 x W: 295 x D: 595 mm
Outer Carton Gross Weight (KG)
21.2 kg

Peak Mini Wallpack 15W 3/4K CCT c/w Photocell & 3h EM

Downloads

FILENAME
ADD TO ZIP
Peak Instructions
PK15EPC-CCT Spec Sheet
PK15EPC-CCT LDT Files
