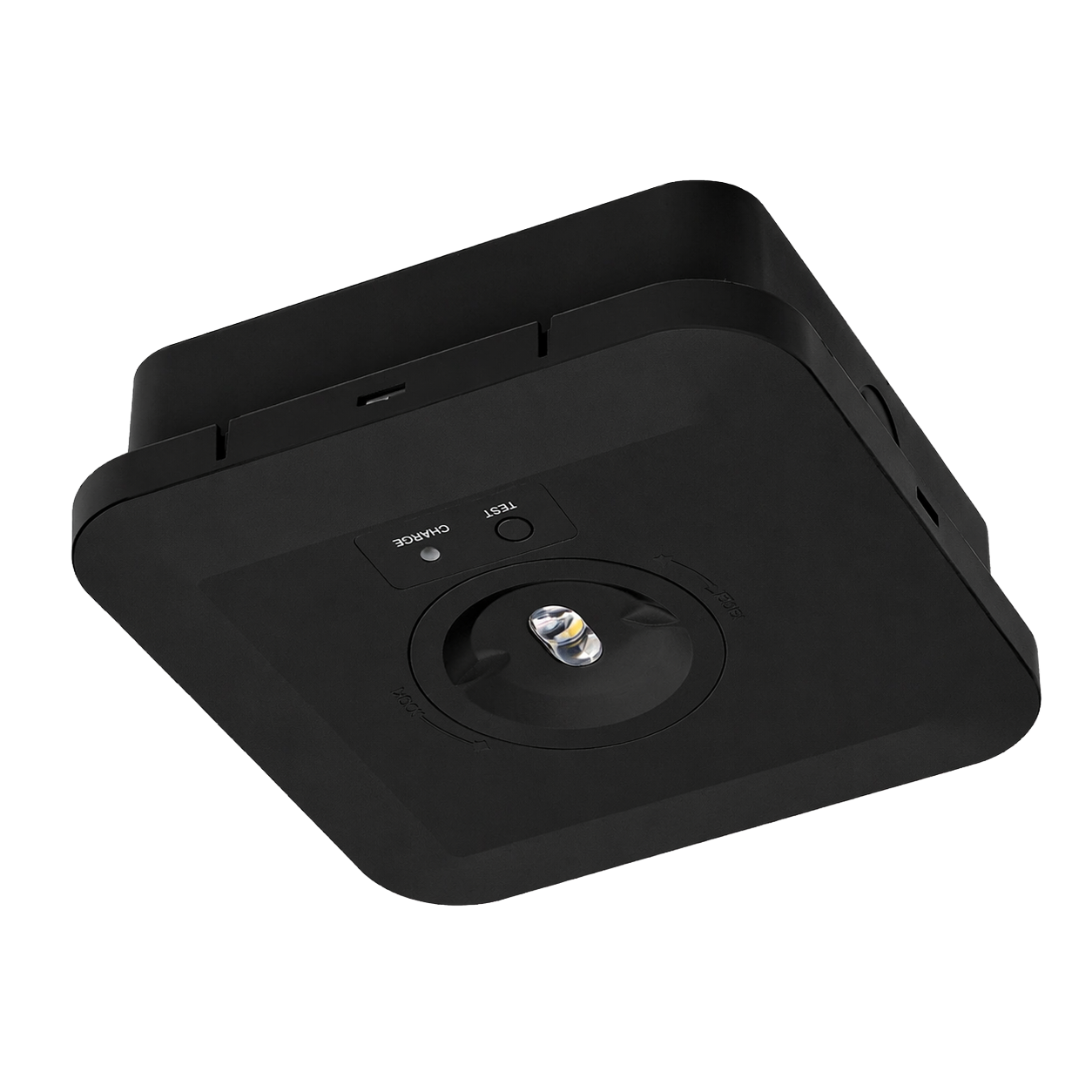

Sentinel Pro Surface V2 Black

The SNP/SS/ST/V2/B is the latest version of the popular Sentinel Pro Surface Emergency Downlight.

  • LiFePO4 Battery Technology
  • 3 Hours Emergency
  • Open Area & Escape Route Optics
  • IP65
  • Selectable Self Test or Manual Test operation

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
SNP/SS/ST/V2/B
Wattage
2W
Lumen Output
280lm
Colour Appearance (CCT)
6500K
Frequency
50/60Hz
Driver Type
Fixed
Emergency Battery Type
LiFePO4
Colour Finish
Black RAL9005
Warranty
5 Years
Emergency Battery Warranty
5 Years
Voltage
220-240V
IP Rating
IP65
LED Life Expectancy
102000 Hours
Power Factor
>0.3
Working Temperature
0˚C to +45˚C
EM Working Temperature
0˚C to 45˚C
Beam Angle
Open Area & Escape
Electrical Class
Class II
Approval
UKCA CE
Material (Body/Housing)
Polycarbonate
Material (Diffuser/Cover)
Acrylic
Dimensions (mm)
L: 155 x W: 155 x D: 46 mm
Net Weight (KG)
0.375 kg
Barcode
5055807631631
Box Dimensions (mm)
L:170 x W: 160 x D: 60 mm
Box Gross Weight (KG)
0.449 kg
Units/Outer Carton
20
Outer Carton Barcode
15055807631638
Outer Carton Dimensions (mm)
L:360 x W: 340 x D: 325 mm
Outer Carton Gross Weight (KG)
9.6 kg

Downloads

FILENAME
SINGLE DOWNLOAD
ADD TO ZIP
SNP/SS/ST/V2/B Datasheet
SNP/SS/ST/V2/B Instructions
Download ZIP
