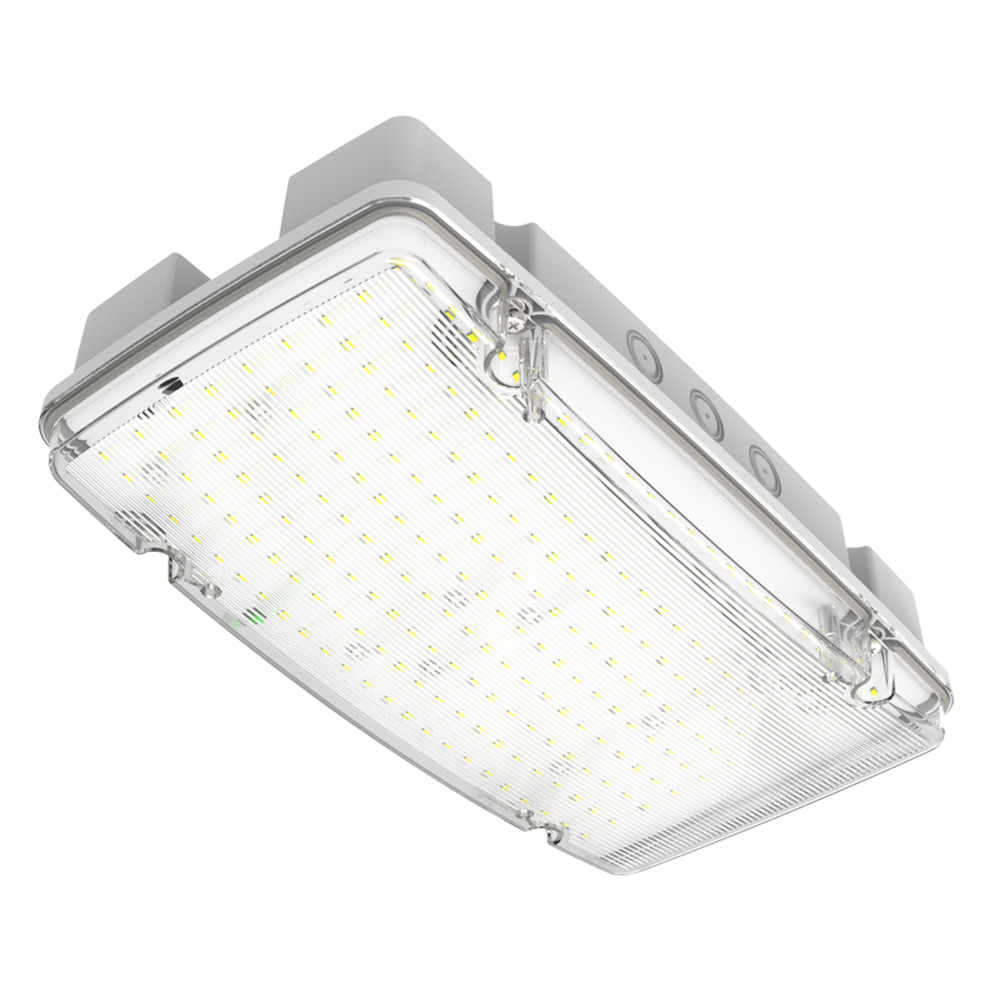

Vanguard Mini Emergency LED Bulkhead

Red Arrow Vanguard Mini Emergency LED Bulkhead
Back

Vanguard Mini Emergency LED Bulkhead

The VANMINI/3/ST is a mini bulkhead that can be configured for either maintained or non-maintained operation.

  • LiFePO4 Battery Technology
  • 3 Hours Emergency
  • 120° Distribution
  • IP65 / IK08
  • Selectable Self / Manual Test Operation
  • Selectable maintained/non-maintained operation

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
VANMINI/3/ST
Wattage
3W
Lumen Output
150lm
Emergency Lumen Output
135lm
Colour Appearance (CCT)
6500K
Frequency
50/60Hz
Colour Rendition (CRI)
Ra >80
Driver Type
Fixed
Emergency Battery Type
LiFePO4
Colour Finish
White RAL9003
Warranty
5 Years
Emergency Battery Warranty
5 Years
Voltage
220-240V
IP Rating
IP65
IK Rating
IK08
Power Factor
>0.5
Working Temperature
0˚C to +45˚C
EM Working Temperature
0˚C to 45˚C
Beam Angle
120°
Electrical Class
Class II
Approval
UKCA CE
Material (Body/Housing)
ABS
Material (Diffuser/Cover)
Polycarbonate
Dimensions (mm)
L: 255 x W: 110 x D: 60 mm
Net Weight (KG)
0.41 kg
Barcode
5055807630863
Box Dimensions (mm)
L:283 x W: 114 x D: 68 mm
Box Gross Weight (KG)
0.5 kg
Units/Outer Carton
15
Outer Carton Barcode
15055807630860
Outer Carton Dimensions (mm)
L:360 x W: 295 x D: 365 mm
Outer Carton Gross Weight (KG)
8 kg

Downloads

FILENAME
SINGLE DOWNLOAD
ADD TO ZIP
VANMINI/3/ST Datasheet
VANMINI/3/ST Instructions
