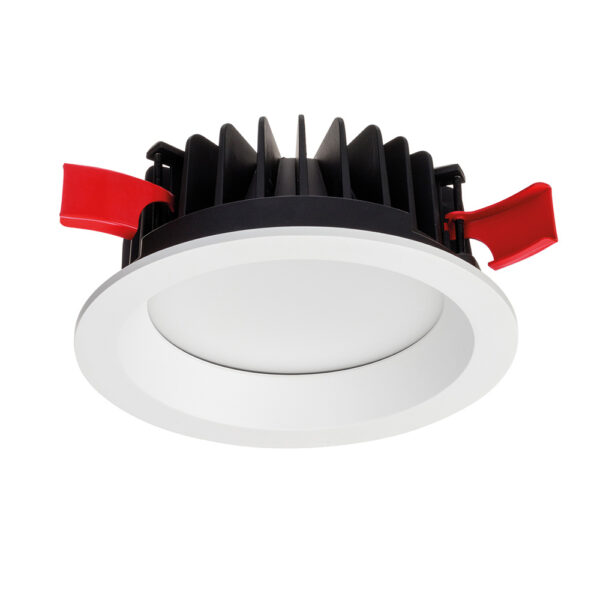

Red Arrow Venus Compact LED Downlights Bracket
Red Arrow Venus Compact LED Downlights Screw Installation
Red Arrow Venus Compact LED Downlights Installation
Red Arrow Venus Compact LED Downlights Dimensions
Red Arrow 2 Years On-Site Warranty
Back

Venus LED Downlights

A 18W Venus Compact Downlight, the VEN170/1-40 is a 170mm downlight, that has a 2000 lumen output and is perfect in commercial environments.

  • High quality, die-cast aluminium construction
  • 2000 lumen output
  • Optional floating glass attachment
  • Ceiling brackets adjust from below
  • Ideal for PL downlight retrofit

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
VEN170/2-40
Wattage
18W
Lumen Output
2000 lm
Efficacy
110 lm/W
Colour Appearance (CCT)
4000K
Frequency
50/60Hz
Colour Rendition (CRI)
Ra > 80
Driver Type
Fixed Output
Colour Finish
White RAL9003
Warranty
5 Years
Voltage
230V
IP Rating
IP54 (from below ceiling)
LED Life Expectancy
L80B50 50,000 Hours
Power Factor
0.9
Working Temperature
-20°C to 40°C
Electrical Class
Class II
Approval
UKCA & CE
Material (Body/Housing)
Die-Cast Aluminium
Material (Diffuser/Cover)
PMMA
Dimensions (mm)
Ø: 195 x D: 78 mm
Net Weight (KG)
1.0 kg
Barcode
5055807623476
Box Dimensions (mm)
L: 245 x W: 200 x D: 100 mm
Box Gross Weight (KG)
1.1 kg
Units/Outer Carton
12
Outer Carton Barcode
15055807623473
Outer Carton Dimensions (mm)
L: 510 x W: 420 x D: 325 mm
Outer Carton Gross Weight (KG)
14.3 kg
