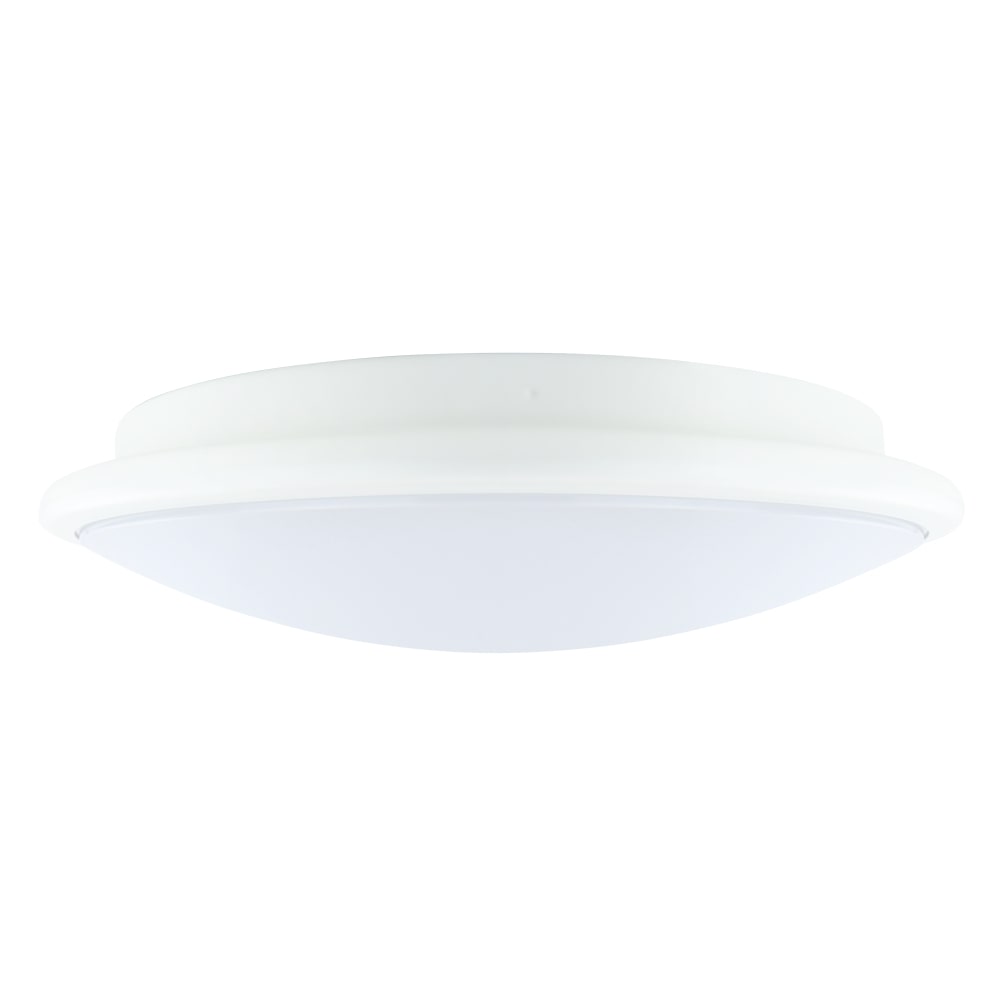

Wilson X Evolution LED Bulkhead V2

Red Arrow Wilson X Evolution LED Bulkhead V2
Red Arrow 2 Years On-Site Warranty
Back

Wilson X Evolution LED Bulkhead V2

The WLX30EVO-CCT-V2 is the next generation of the popular Wilson X LED Bulkhead.

  • Slim profile with 4 side conduit entry
  • Efficacy of 120lm/W
  • Selectable Power & CCT
  • Plug & Play Emergency & Microwave sensor

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
WLX30EVO-CCT-V2
Wattage
16W | 21W | 25W | 30W
Lumen Output
2000lm | 2520lm | 3000lm | 3600lm
Efficacy
120 lm/w
Energy class
C
Emergency Lumen Output
250 lm
Colour Appearance (CCT)
3000K | 4000K | 6000K
Frequency
50Hz
Colour Rendition (CRI)
Ra >80
Driver Type
Selectable Power
Colour Finish
White RAL9010
Warranty
5 Years
Voltage
230V
IP Rating
IP20
IK Rating
IK04
LED Life Expectancy
L80B50 40,000 Hours
Power Factor
>0.9
Working Temperature
-20°C to 40°C
Electrical Class
Class I
Approval
UKCA CE
Material (Body/Housing)
Steel
Material (Diffuser/Cover)
Polycarbonate
Dimensions (mm)
Ø: 435 x D: 100 mm
Net Weight (KG)
2.07 kg
Barcode
5055807628143
Box Dimensions (mm)
L: 445 x W: 445 x D: 112 mm
Box Gross Weight (KG)
2.41 kg
Units/Outer Carton
5
Outer Carton Barcode
15055807628140
Outer Carton Dimensions (mm)
L: 475 x W: 465 x D: 590 mm
Outer Carton Gross Weight (KG)
13 kg

Downloads

FILENAME
SINGLE DOWNLOAD
ADD TO ZIP
WLX30EVO-CCT-V2 Datasheet
WLX30EVO-CCT-V2 Instructions
WLX30EVO-CCT-V2 LDT Files
Download ZIP
