*BF Batten LED Luminaire

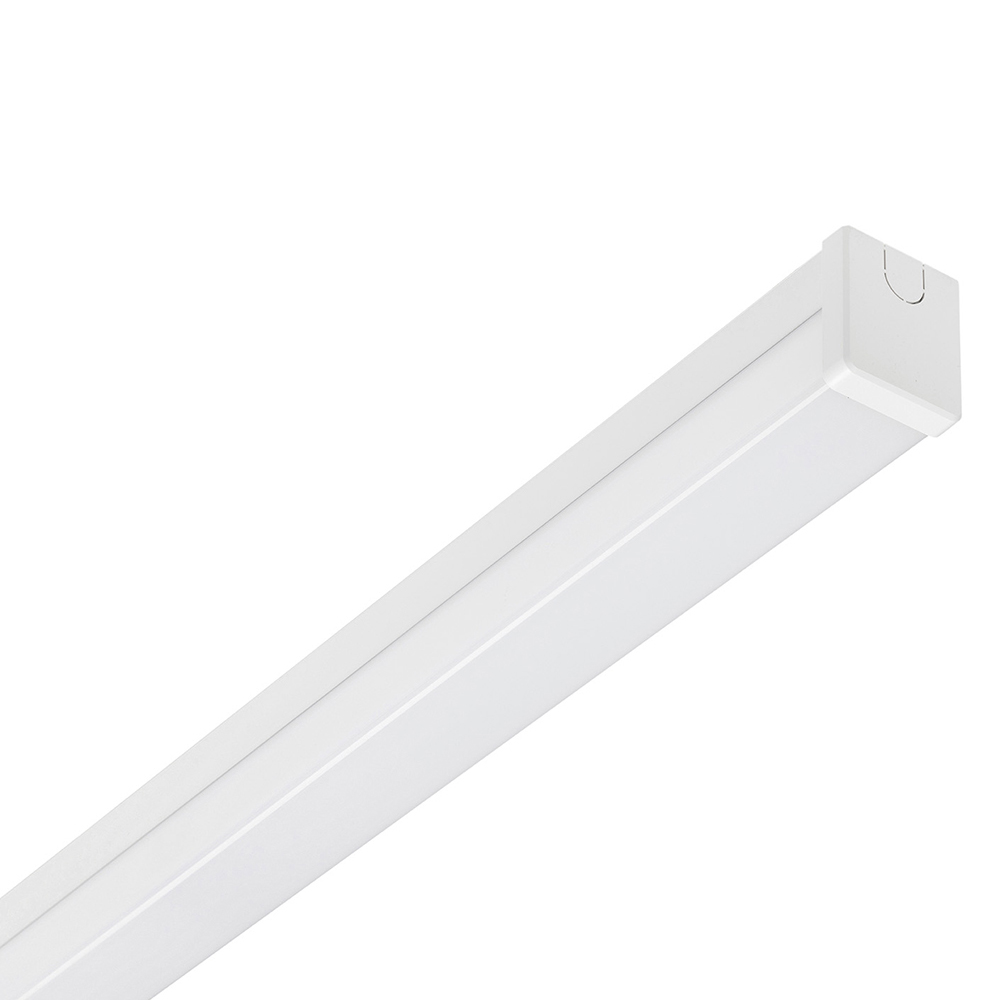

BF Batten 1500mm Single c/w 3HR Emergency
Back

*BF Batten LED Luminaire

This product has been discontinued.

You can still find instructions and spec sheet information for this discontinued product below.

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
BF530WE-1
Wattage
24W
Lumen Output
2500 lm
Efficacy
104 lm/W
Emergency Lumen Output
600 lm
Colour Appearance (CCT)
4100K
Frequency
50/60Hz
Colour Rendition (CRI)
Ra > 80
Driver Type
Fixed Output
Emergency Battery Type
Ni-Cd
Colour Finish
White
Warranty
5 Years
Emergency Battery Warranty
1 Year
Voltage
230V
IP Rating
IP40
IK Rating
IK03
LED Life Expectancy
L70B50 50,000 Hours
Power Factor
0.95
Working Temperature
0°C to 45°C
EM Working Temperature
0°C to 45°C
Electrical Class
Class I
Approval
UKCA & CE
Material (Body/Housing)
Steel
Material (Diffuser/Cover)
Polycarbonate
Dimensions (mm)
L: 1530 x W: 69 x D: 82 mm
Length (mm)
1530
Width (mm)
69
Depth (mm)
82
Net Weight (KG)
2.65 kg
Barcode
5055807620055
Box Dimensions (mm)
L: 1536 x W: 85 x D: 74 mm
Box Gross Weight (KG)
2.58 kg
Units/Outer Carton
4
Outer Carton Barcode
25055807620059
Outer Carton Dimensions (mm)
L: 1550 x W: 240 x D: 190 mm
Outer Carton Gross Weight (KG)
11.5 kg

Downloads

FILENAME
SINGLE DOWNLOAD
ADD TO ZIP
BF Batten Instructions
BF530WE-1 Spec Sheet
Download ZIP
