Optimum LED Panel

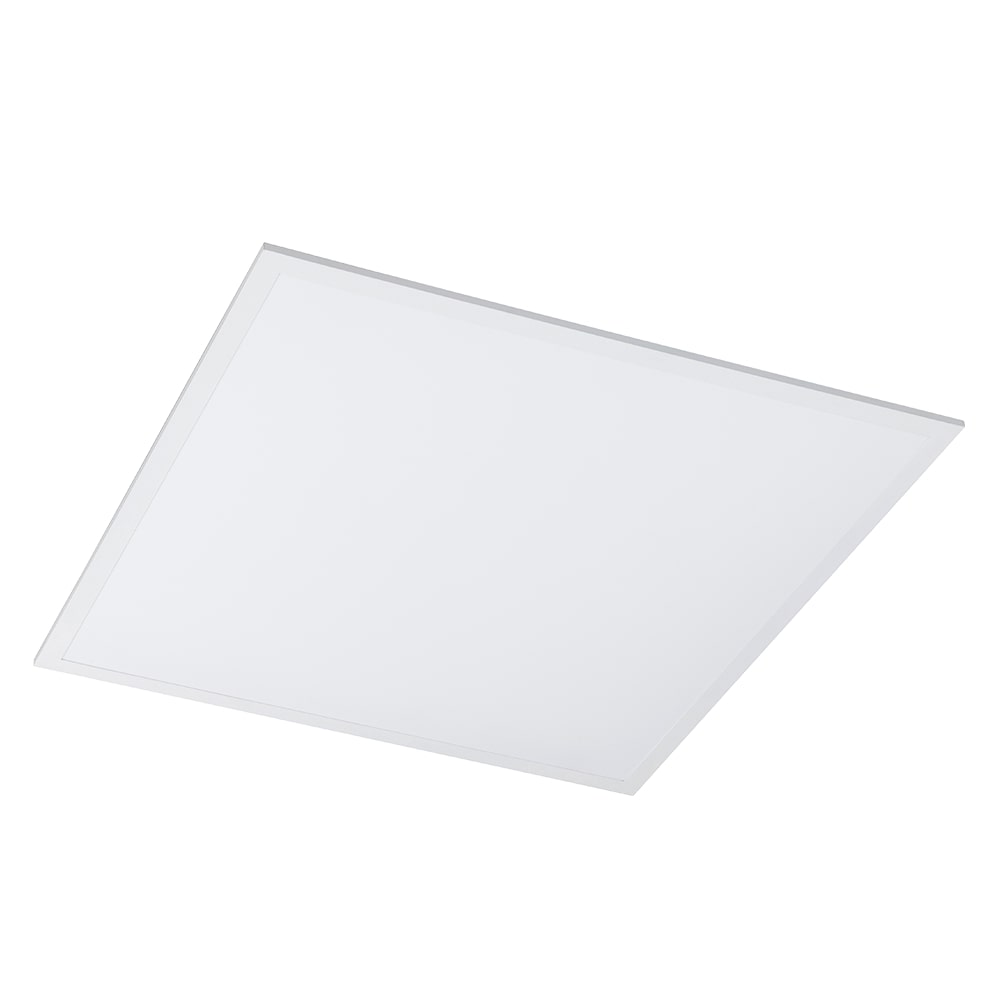

The OPT66-2836-40 is a cost effective option for UGR<19 panels.

  • Efficacy up to 110 lm/W
  • TP(a) diffuser as standard
  • Emergency options available

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
OPT66-2836-40
Wattage
28W | 32W | 36W
Lumen Output
3080lm | 3520lm | 3960lm
Efficacy
110 lm/W
Energy class
E
Colour Appearance (CCT)
4000K
Frequency
50/60Hz
Colour Rendition (CRI)
Ra >80
Driver Type
Fixed Output
Colour Finish
White RAL9003
Warranty
5 Years
Voltage
230V
IP Rating
IP40
IK Rating
IK02
LED Life Expectancy
L80B50 50,000 Hours
Power Factor
>0.9
Working Temperature
-10°C to 40°C
Electrical Class
Class II
Approval
UKCA CE
Material (Body/Housing)
Aluminium
Material (Diffuser/Cover)
TP(a) Rated Styrene
Dimensions (mm)
L: 595 x W: 595 x D: 32 mm
Net Weight (KG)
1.5 kg
Barcode
5055807630054
Box Dimensions (mm)
L: 605 x W: 645 x D: 38 mm
Box Gross Weight (KG)
1.85 kg
Units/Outer Carton
5
Outer Carton Barcode
15055807630051
Outer Carton Dimensions (mm)
L: 625 x W: 665 x D: 210 mm
Outer Carton Gross Weight (KG)
10.22 kg

Downloads

FILENAME
SINGLE DOWNLOAD
ADD TO ZIP
OPT66-2836-40 Datasheet
OPT66-2836-40 Instructions
OPT66-2836-40 LDT Files
Download ZIP
