Orbit LED Downlights

Orbit LED Downlights

Orbit Recessed Circular Downlight 15W LED 190mm Dia 4000K

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
ORB15-40
Wattage
15W
Lumen Output
1125 lm
Efficacy
75 lm/W
Energy class
G
Colour Appearance (CCT)
4000K
Frequency
50/60Hz
Colour Rendition (CRI)
Ra > 80
Driver Type
Fixed Output
Colour Finish
White RAL9003
Warranty
3 Years
Voltage
230V
IP Rating
IP44 (from below ceiling)
IK Rating
IK04
LED Life Expectancy
L70B50 30,000 Hours
Power Factor
0.9
Working Temperature
-10°C to 50°C
Electrical Class
Class II
Approval
UKCA CE
Material (Body/Housing)
Die-Cast Aluminium
Material (Diffuser/Cover)
TP(b) Styrene

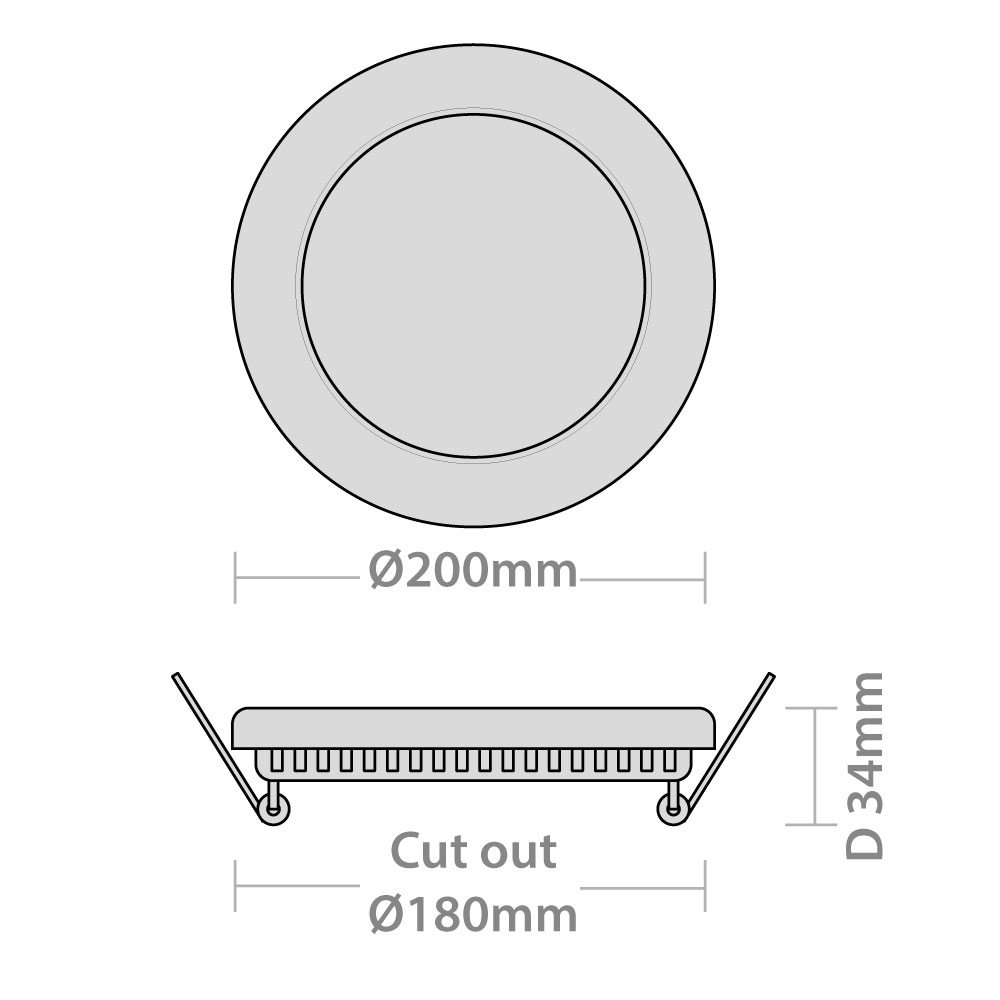

Dimensions (mm)
Ø: 200 x D: 34 mm
Cut out (mm)
180
Net Weight (KG)
0.30 kg
Barcode
5055807622363
Box Dimensions (mm)
L: 230 x W: 225 x D: 35 mm
Box Gross Weight (KG)
0.39 kg
Units/Outer Carton
20
Outer Carton Barcode
15055807622360
Outer Carton Dimensions (mm)
L: 758 x W: 243 x D: 260 mm
Outer Carton Gross Weight (KG)
9.4 kg

Orbit Recessed Circular Downlight 15W LED 190mm Dia 4000K

Downloads

FILENAME
ADD TO ZIP
Orbit Instructions
ORB15-40 Spec Sheet
ORB15-40 LDT File
