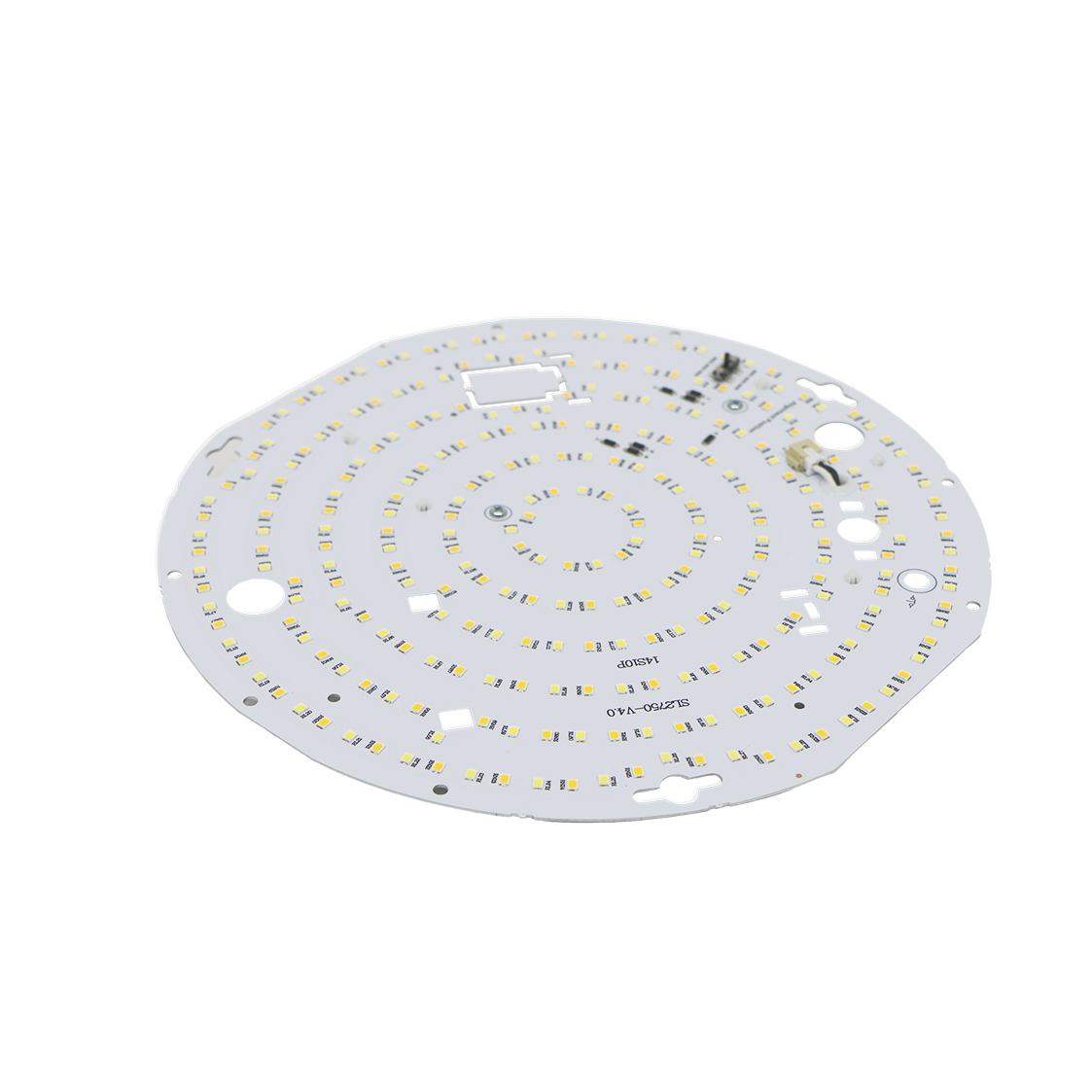

Red Arrow Plug & Play Circular Gear Tray V2

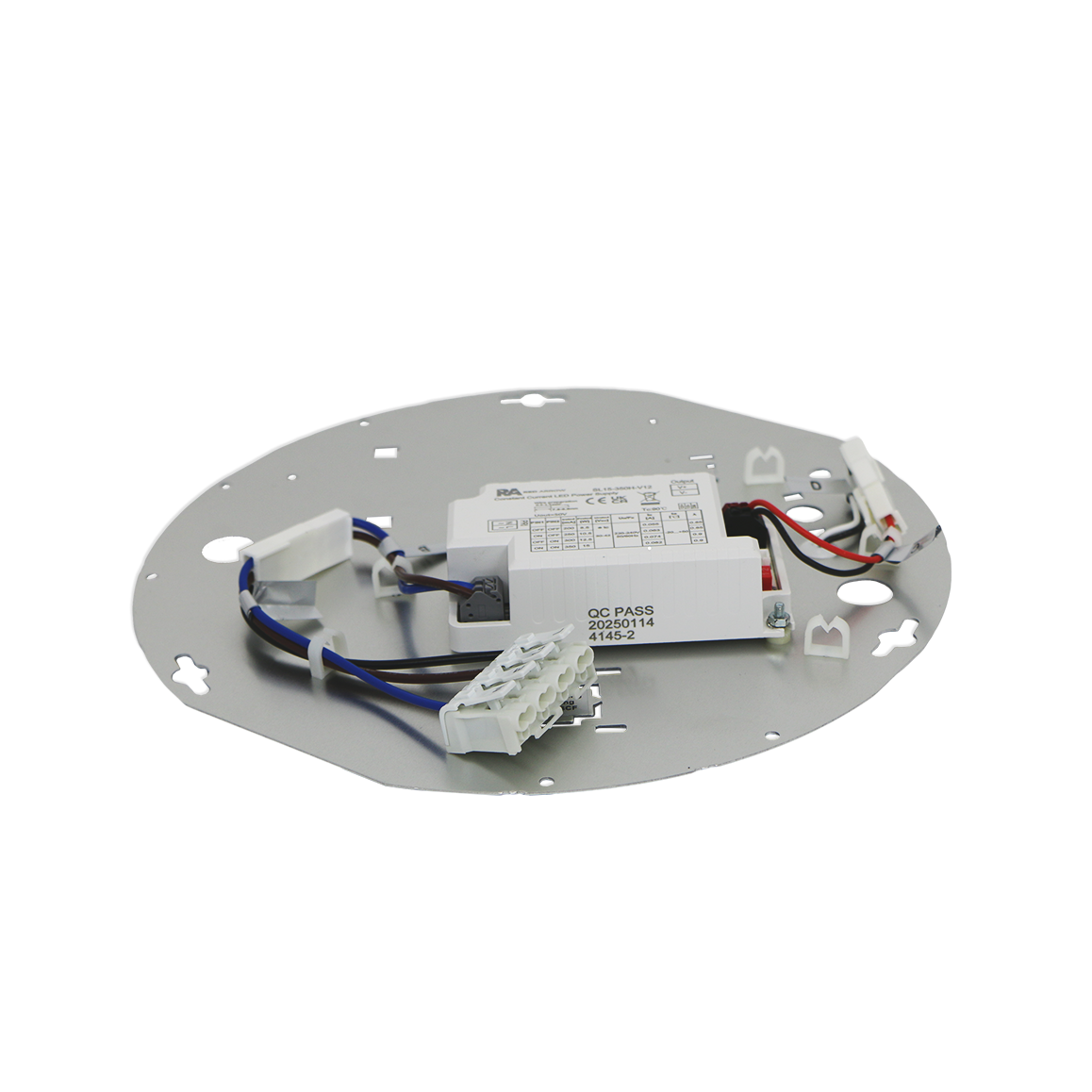

Red Arrow Plug & Play Circular Gear Tray V2 Back

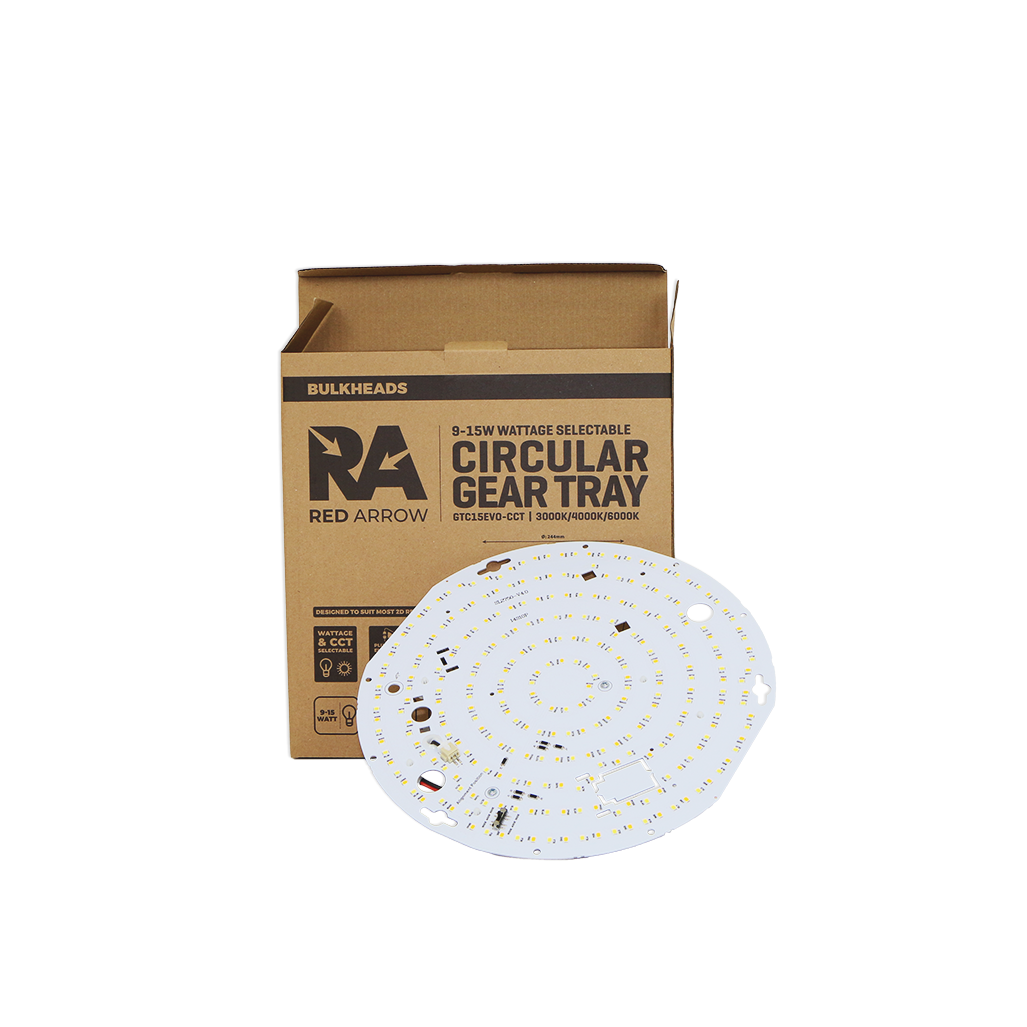

Red Arrow Plug & Play Circular Gear Tray V2 Box

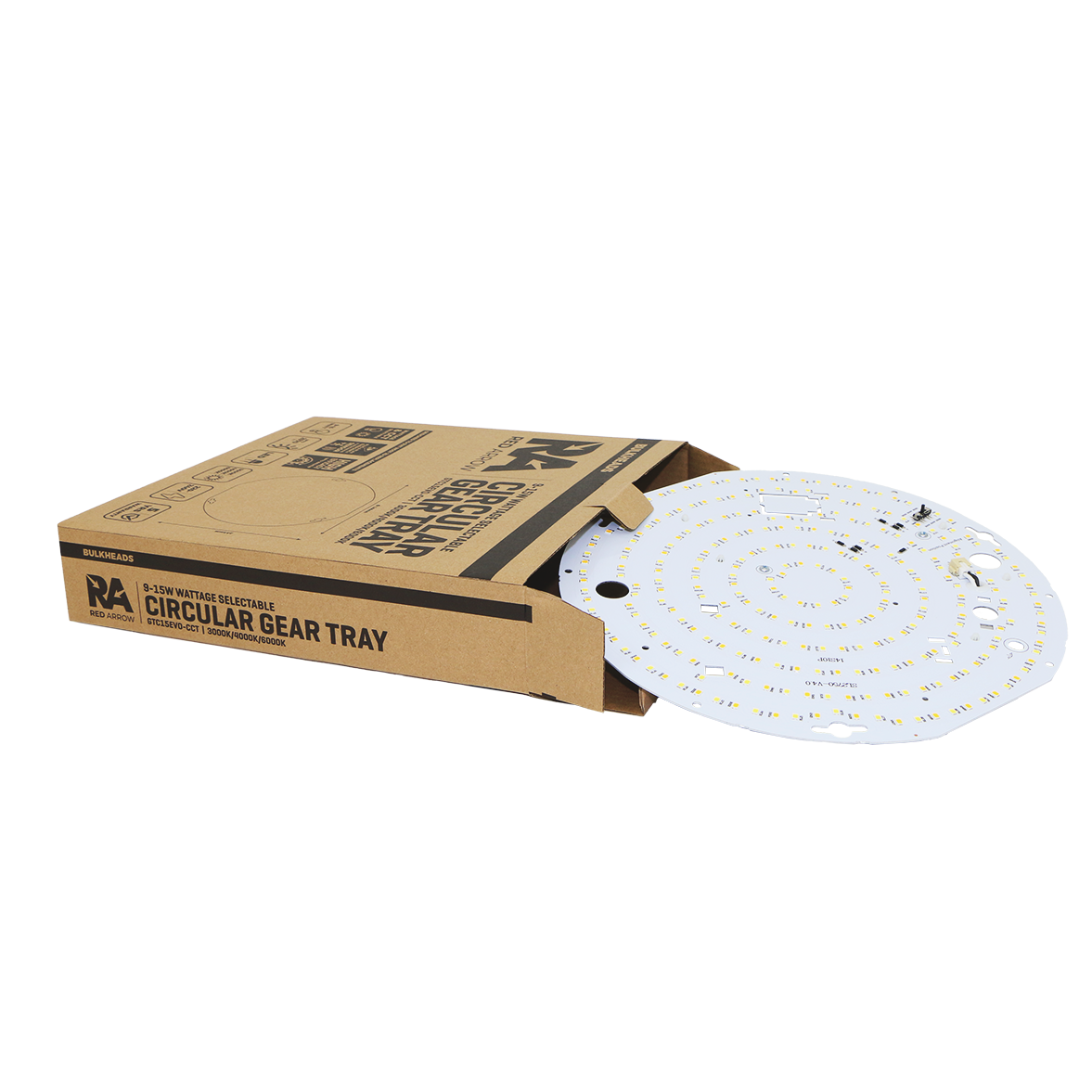

Red Arrow Plug & Play Circular Gear Tray V2 Box Side
Back

Plug & Play Circular LED Gear Tray

The GTC15EVO-CCT-V2 is the latest generation plug & play gear tray.

  • Selectable Power 9 – 15W
  • Selectable CCT 3000/4000/6000K
  • Designed for use with POLO X, Robust and suitable for wide variety of retrofits
  • Efficacy of 171 lm/W
  • Plug & Play Emergency and Microwave sensor

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
GTC15EVO-CCT-V2
Wattage
9W | 11W | 13W | 15W
Lumen Output
1500lm | 1826lm | 2158lm | 2570lm
Efficacy
171 lm/W
Energy class
C
Colour Appearance (CCT)
3000K | 4000K | 6000K
Frequency
50/60Hz
Colour Rendition (CRI)
Ra >80
Driver Type
Selectable Power
Colour Finish
White
Warranty
5 Years
Voltage
220-240V
Power Factor
>0.8
Working Temperature
-20°C to 40°C
Electrical Class
Class II
Approval
UKCA CE
Material (Body/Housing)
Phenolic Resin
Dimensions (mm)
Ø: 245 x D: 46mm
Net Weight (KG)
0.24 kg
Barcode
5055807629157
Box Dimensions (mm)
L: 256 x W: 268 x D: 55 mm
Box Gross Weight (KG)
0.36 kg
Units/Outer Carton
10
Outer Carton Barcode
15055807629154
Outer Carton Dimensions (mm)
L: 305 x W: 270 x D: 550 mm
Outer Carton Gross Weight (KG)
4.2 kg
