*BF Batten LED Luminaire

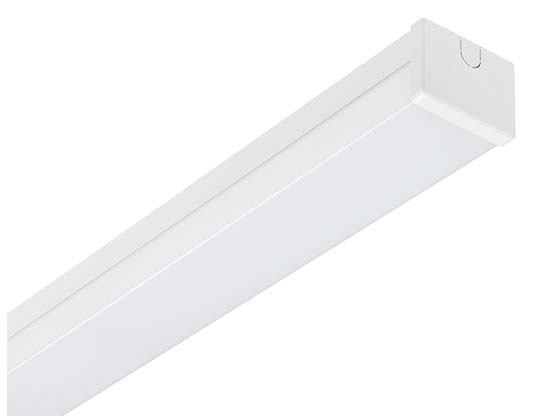

BF Batten 1500mm Twin
Back

*BF Batten LED Luminaire

This product has been discontinued.

You can still find instructions and spec sheet information for this discontinued product below.

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
BF550W-1
Wattage
46W
Lumen Output
4500 lm
Efficacy
98 lm/W
Colour Appearance (CCT)
4100K
Colour Rendition (CRI)
Ra > 80
Driver Type
Fixed Output
Colour Finish
White
Warranty
5 Years
Voltage
230V
IP Rating
IP40
IK Rating
IK03/ IK07
LED Life Expectancy
L70B50 50,000 Hours
Power Factor
0.95
Working Temperature
-15°C to 45°C
Electrical Class
Class I
Approval
UKCA & CE
Material (Body/Housing)
Steel
Material (Diffuser/Cover)
Polycarbonate
Dimensions (mm)
L: 1530 x W: 109 x D: 82 mm
Length (mm)
1530
Width (mm)
109
Depth (mm)
82
Net Weight (KG)
2.93 KG
Barcode
5055807617949
Box Dimensions (mm)
L: 1536 x W: 114 x D: 85 mm
Box Gross Weight (KG)
2.75 KG
Units/Outer Carton
4
Outer Carton Barcode
25055807617943
Outer Carton Dimensions (mm)
L: 1550 x W: 240 x D: 190 mm
Outer Carton Gross Weight (KG)
12 KG

Downloads

FILENAME
SINGLE DOWNLOAD
ADD TO ZIP
BF Batten Instructions
BF550W-1 Spec Sheet
BF550W-1 LDT Files
Download ZIP
