Stellar LED Downlights

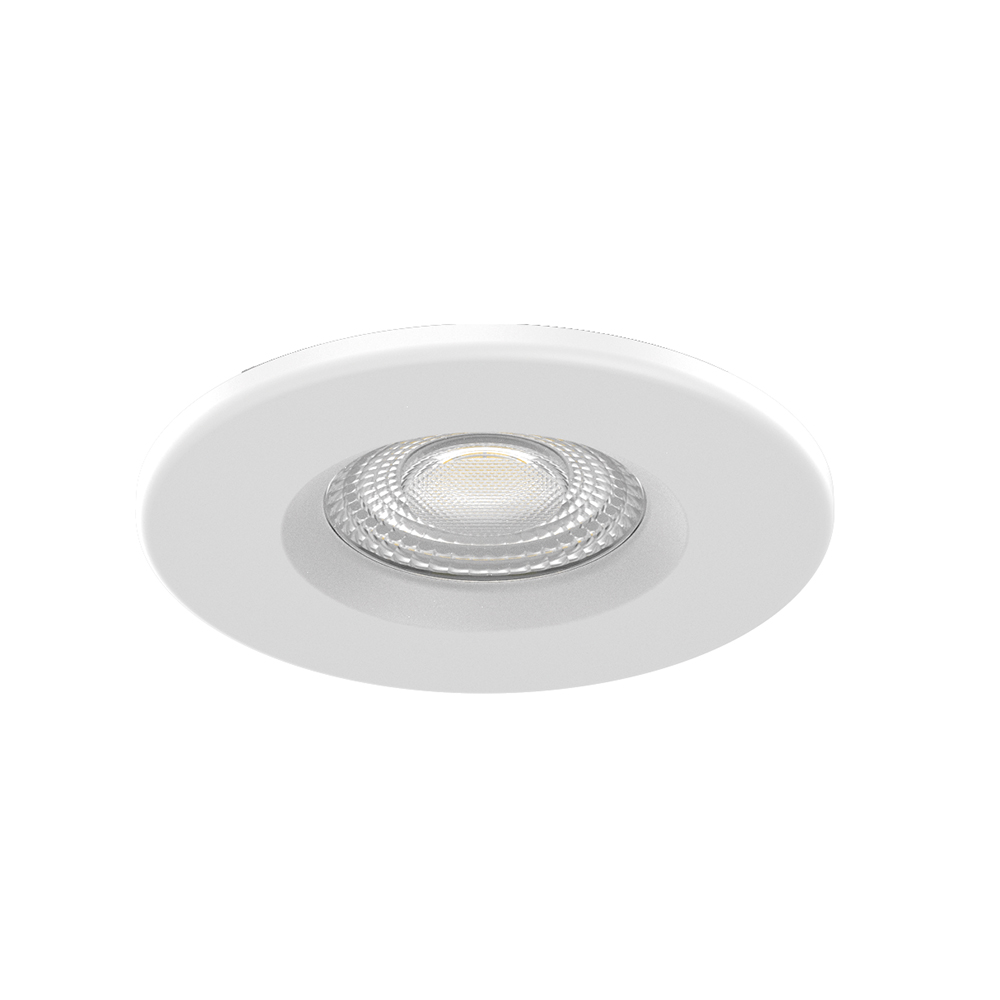

Red Arrow Stellar 4CCT
Red Arrow Stellar 4CCT

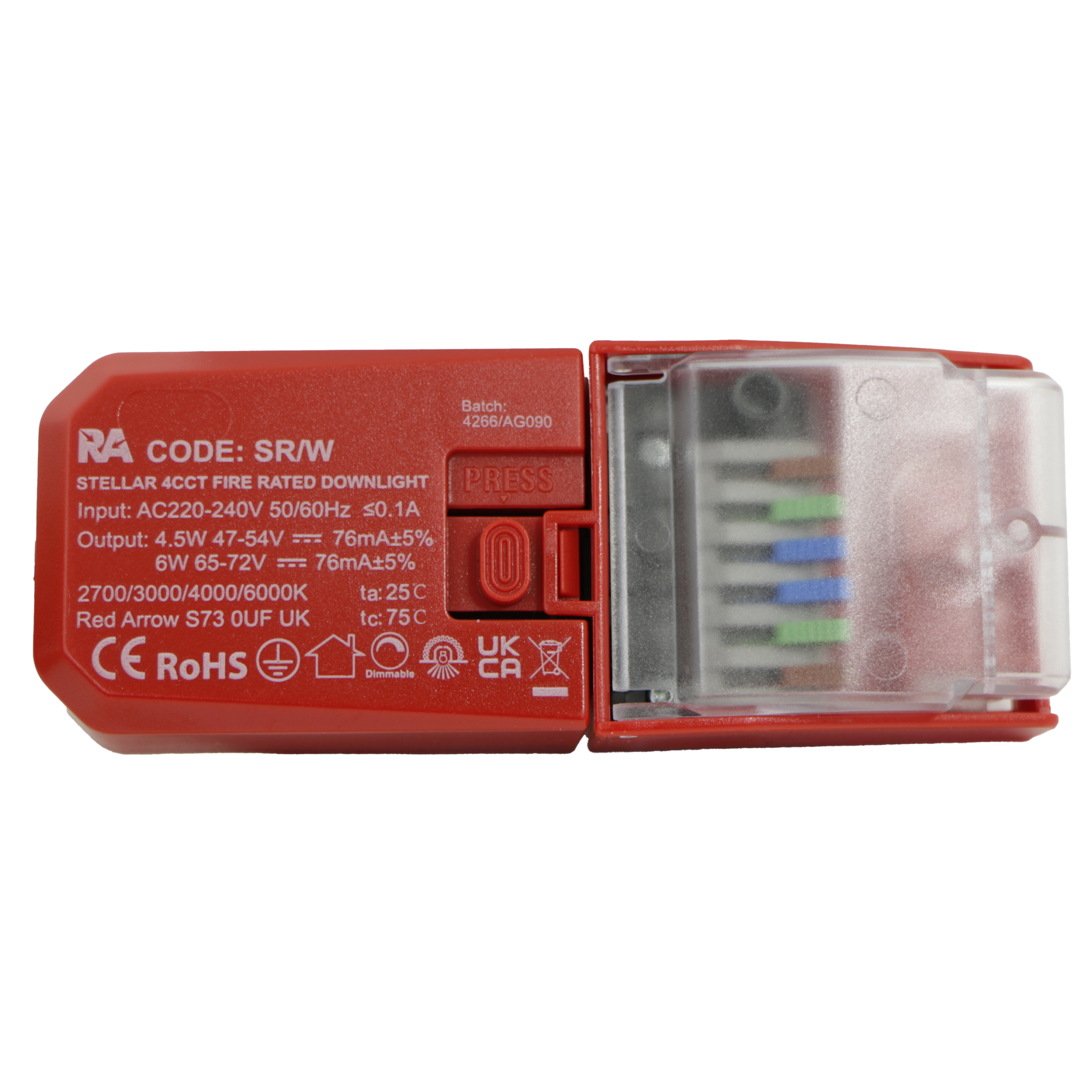

Red Arrow Stellar 4CCT with Switch Detail

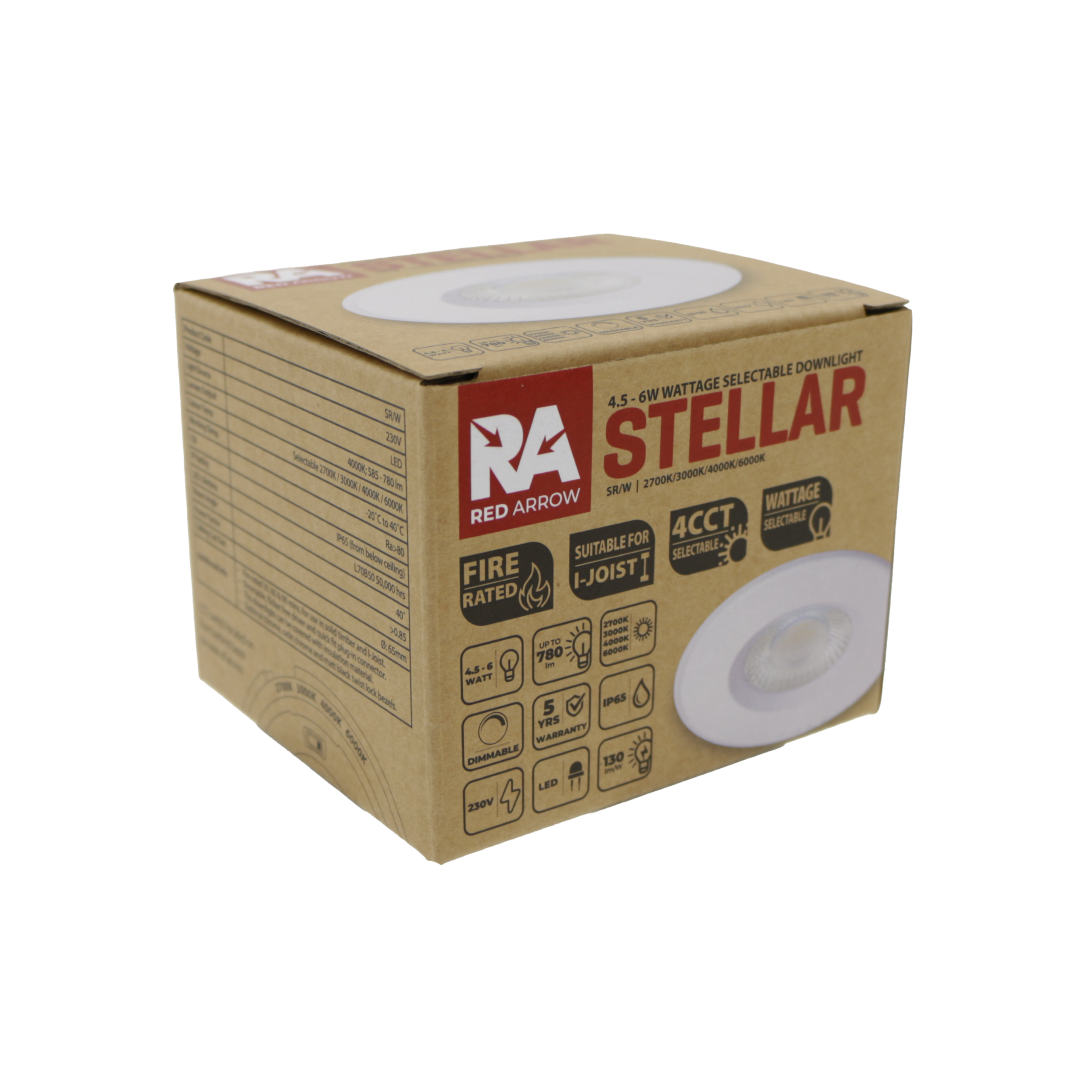

Red Arrow Stellar 4CCT Box
Red Arrow Stellar LED Downlights Energy Label
Back

Stellar LED Downlights

The SR/W is now 4CCT with upgraded speed terminals and emergency loop terminal.

  • Improved speed terminal block & EM loop.

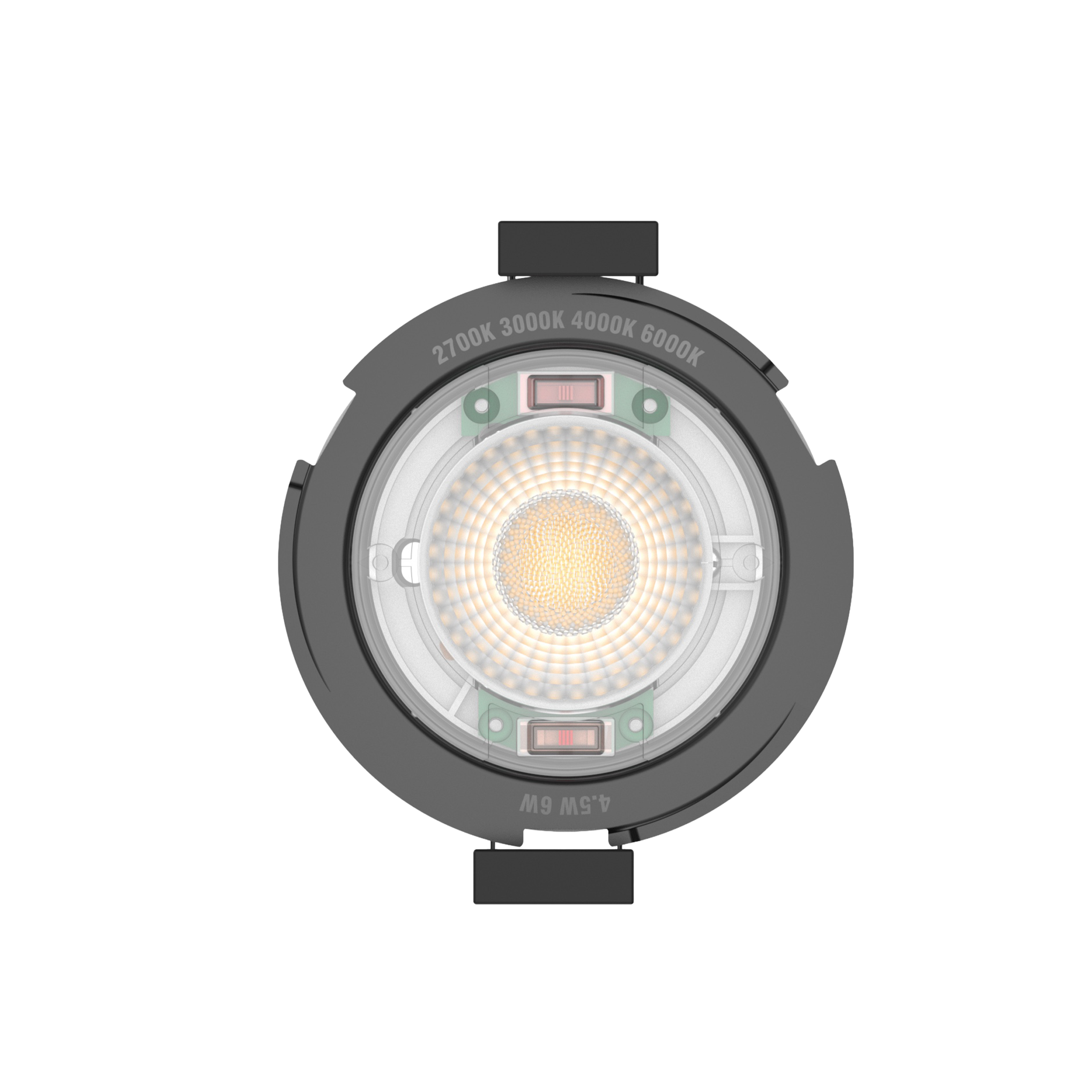

  • Selectable 4CCT.
  • Fire rated to EN1365-2:2014 / BS476-21:1987.
  • Acoustic rating to meet ISO10140 – 2 : 2010.
  • Optional interchangeable bezels.

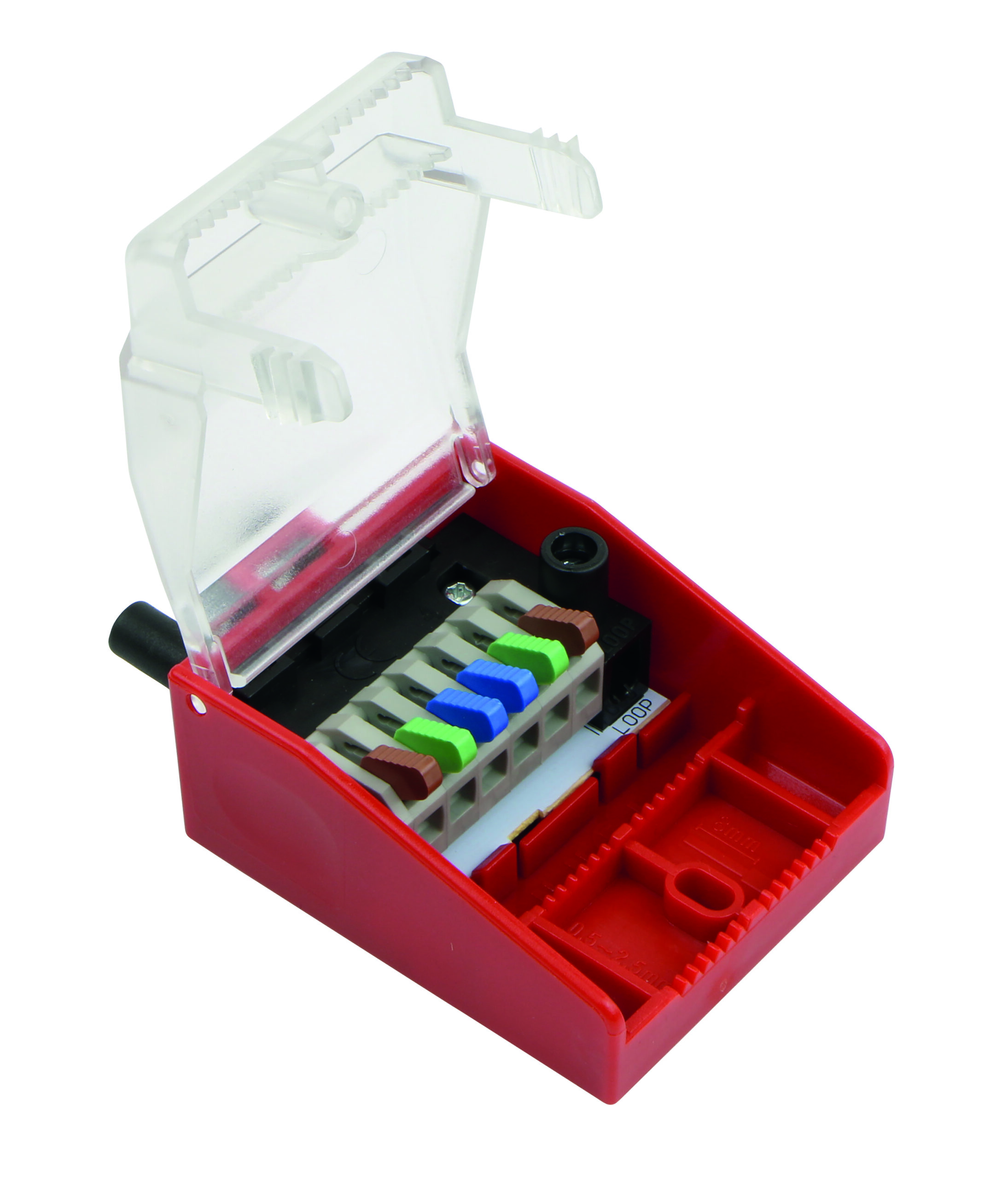

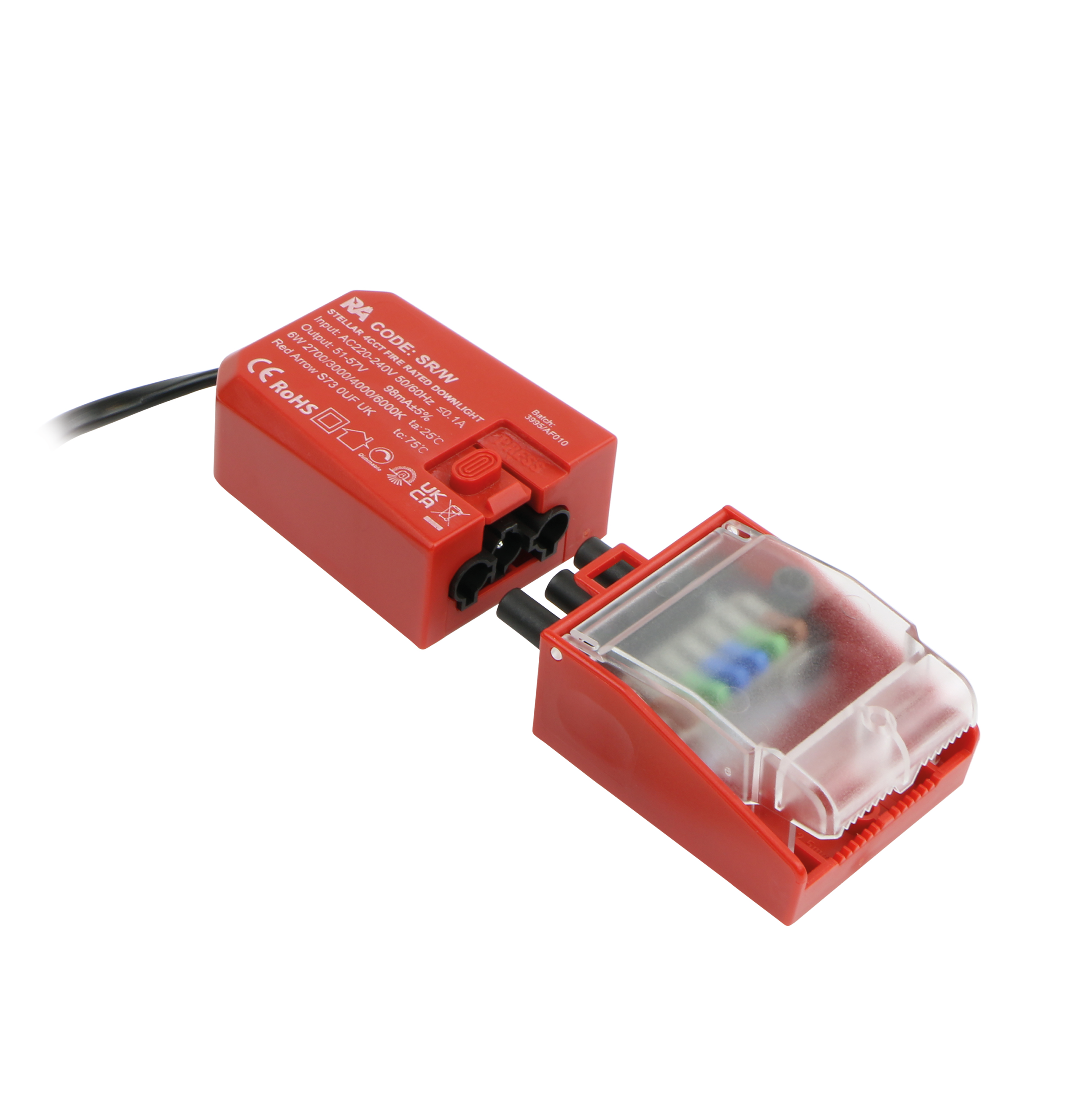

  • Tool-free plug & socket connection.

Speak to your local account manager

Add to specAddedLogin to Buy Online
Product Code
SR/W
Wattage
4.5 | 6W
Lumen Output
585 | 775lm
Efficacy
130 lm/W
Energy class
E
Colour Appearance (CCT)
2700K / 3000K / 4000K / 6000K
Frequency
50/60Hz
Colour Rendition (CRI)
Ra > 80
Driver Type
Dimmable
Colour Finish
White RAL9003
Warranty
5 Years
Voltage
230V
IP Rating
IP65 (from below ceiling)
IK Rating
IK07
LED Life Expectancy
L70B50 50,000 Hours
Power Factor
>0.85
Working Temperature
-20°C to 40°C
Beam Angle
40°
Electrical Class
Class II
Approval
UKCA CE
Material (Body/Housing)
Steel
Material (Diffuser/Cover)
Polycarbonate
Dimensions (mm)
Ø: 86 x D: 36 mm
Net Weight (KG)
0.203 kg
Barcode
5055807623728
Box Dimensions (mm)
L:90 x W: 90 x D: 81 mm
Box Gross Weight (KG)
0.25 kg
Units/Outer Carton
48
Outer Carton Barcode
 15055807623725
Outer Carton Dimensions (mm)
L: 385 x W: 385 x D: 355 mm
Outer Carton Gross Weight (KG)
12.28 kg

Downloads

FILENAME
SINGLE DOWNLOAD
ADD TO ZIP
Stellar Instructions
SR/W Spec Sheet
SR/W LDT Files
Download ZIP
